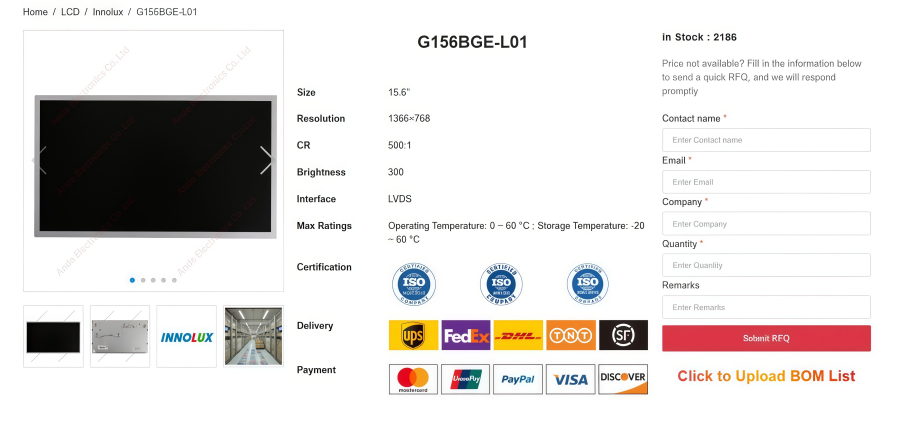

G156BGE-L01 Introduction
Innolux G156BGE-L01 is a 15.6-inch industrial-grade a-Si TFT-LCD display module designed for industrial applications. The display features a WXGA (1366 × 768) resolution and supports up to 16.7 million colors, meeting the display quality and information visualization requirements of industrial equipment.
The G156BGE-L01 integrates a WLED backlight system and includes a built-in backlight driver circuit (Converter Module). The module adopts a standard 30-pin single-channel LVDS (1ch-LVDS) interface, providing good compatibility and enabling easy connection with industrial motherboards and various display controllers.
G156BGE-L01 Structure
The G156BGE-L01 LCD panel adopts a classic flat rectangular industrial-grade design. Its overall outline dimensions are 363.8 (W) × 215.92 (H) mm, with a thickness of 16.85 ± 0.5 mm. Featuring a robust metal frame structure and vibration-resistant design (up to 1.5G), it effectively protects its 344.232 × 193.536 mm active display area.
The front surface of the module is treated with an anti-glare matte finish and a 3H hard-coating layer. Meanwhile, the rear side integrates an edge-lit WLED backlight unit and a built-in LED driver. Standard side and rear mounting holes are provided on the housing, making the module highly convenient for stacking and fixed installation.
G156BGE-L01 Key Specifications
This section provides a detailed overview of the key technical specifications of the Innolux G156BGE-L01, including electrical characteristics, mechanical specifications, and other important parameters, helping you evaluate this LCD panel more effectively.
Parameter | Value |
Brand | |
Model | G156BGE-L01 |
Size | 15.6" |
Composition | LCM |
Resolution | 1366(RGB)×768, WXGA 100PPI |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewangle | 80/80/80/80 |
Color Depth | 16.7M 65% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
Active Area | 347.53(W)×196.84(H) mm |
Pixel Format | RGB Vertical Stripe |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 5.0V (Typ.) |
Weight | 1.19/1.25Kgs (Typ./Max.) |
Outline Size | 363.8(H)×215.92(V) ×17.35(D) mm |
Max Ratings | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
Refer to G156BGE-L01 Datasheet PDF
G156BGE-L01 Interface and Pin Configuration
The following are the detailed pin definitions and function descriptions for the 30-pin LVDS interface of the Innolux G156BGE-L01 industrial LCD panel. This module typically uses a 30-pin connector with a 1.0 mm pitch, such as the P-TWO 187114-30091 or an equivalent connector.

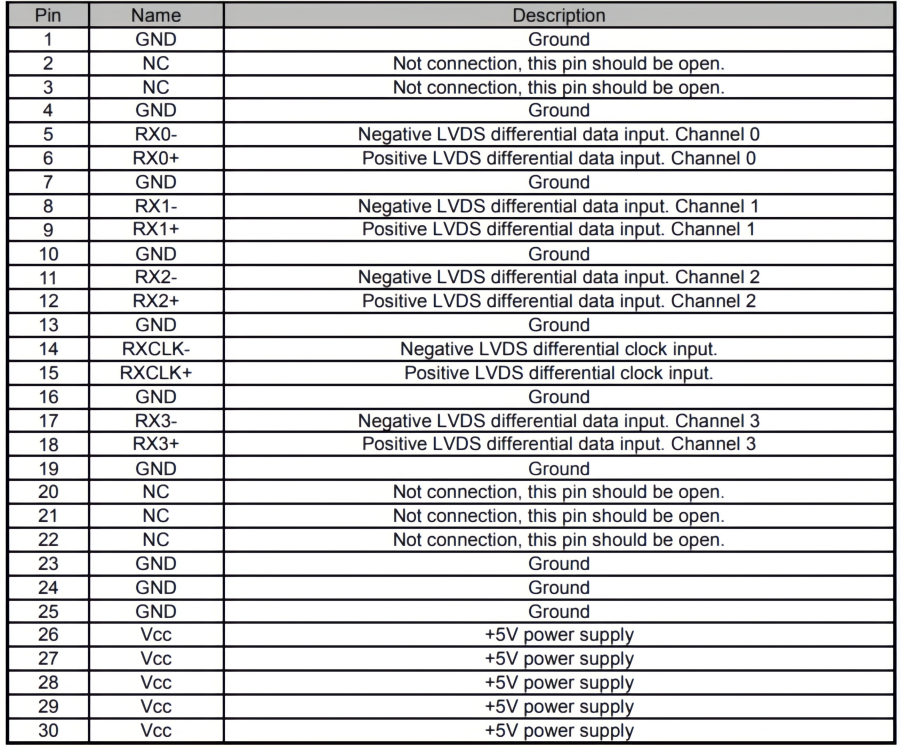

Pin Assignment
Logic Drive Voltage:
Unlike some low-voltage slim panels, the G156BGE-L01’s logic input voltage typically has a standard value of 5.0V. During hardware power management design, it is essential to provide a stable 5V power rail and ensure the supply current meets the typical requirement of 0.22A to 0.27A.
Hardware Layout and Timing Considerations:
When designing the wiring for embedded motherboards or driver boards, engineers must pay special attention to the LCD power-on and power-off sequence. If LVDS signals are applied before the 5V logic voltage is properly stabilized, or if signal voltage remains after the 5V supply is cut off, it may easily cause the panel driver ICs (Gate IC / Source IC) to suffer from latch-up effects, leading to overheating damage or even irreversible screen failure.
Therefore, it is strongly recommended to implement strict timing delay control in firmware or hardware circuitry to ensure safe and stable operation throughout the device’s lifecycle.

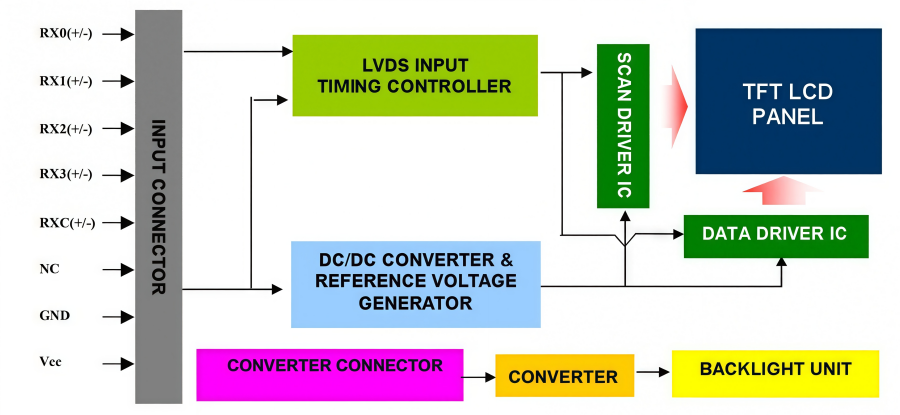

G156BGE-L01 Functional Block Diagram
The functional block diagram of the Innolux G156BGE-L01 shows a dual-path architecture for signal and power driving.
The external mainboard provides Vcc power, ground, and LVDS differential signals (RX0–RX3 and clock RXC) through the 30-pin input interface. The Vcc is fed into a DC/DC converter and reference voltage circuit to generate internal operating voltages, while the LVDS signals are decoded by the timing controller (T-CON IC) for timing distribution. It then drives the scan driver IC and data driver IC to control the TFT LCD panel and display dynamic images.
Meanwhile, the backlight section is powered through a separate connector, where the power is processed by a built-in driver circuit to activate the WLED backlight unit, providing the screen’s illumination source.
Why G156BGE-L01 is Ideal for Industrial Applications?
G156BGE-L01 features mature display performance and demonstrates significant advantages in industrial applications. The following sections analyze its industrial value from multiple aspects.
1. Industrial-Grade Durability
G156BGE-L01 adopts an industrial-grade structural design, supporting vibration resistance up to 1.5G (14.7 m/s²) and offering strong electromagnetic interference (EMI) resistance. Its operating temperature range is 0 ~ 60°C, with a storage temperature range of -20 ~ 60°C, enabling reliable 24/7 continuous operation.
2. Long-Term Availability
As an industrial TFT-LCD product, G156BGE-L01 offers a long product lifecycle and stable supply, effectively reducing the cost of system re-certification caused by frequent EOL (End of Life) issues.
3. Anti-Glare Surface Treatment
The module features a front anti-glare matte surface and a 3H hardness coating, effectively reducing ambient light reflections and improving readability and operational accuracy.
4. Long-Life Backlight
G156BGE-L01 uses a WLED backlight system with an integrated LED driver circuit. The backlight lifetime can reach ≥50,000 hours, helping reduce maintenance costs and improve overall system reliability.
G156BGE-L01 Top Applications in Industrial Fields
The G156BGE-L01 industrial panel flexibly adapts to various system platforms, providing clear and stable visual support for a wide range of terminal devices.
Industrial Automation HMI
The G156BGE-L01 is widely used for Human-Machine Interfaces (HMIs) in industrial automation control systems, displaying real-time equipment operating status and parameter information.
l PLC control panels
l Production line monitoring terminals
l Automation control cabinet displays
Test & Measurement Equipment
In various testing and inspection devices, this screen displays test data, waveforms, and analysis results, ensuring clear and stable data visualization.
l Circuit testers
l Automated Optical Inspection (AOI) equipment
l Signal analyzers
Industrial Self-Service Terminals
In various industrial-grade self-service systems, this panel provides stable HMI display capabilities, commonly serving as the interface for user operations and information display.
l Self-service inquiry kiosks
l Industrial POS systems
Transportation Systems
With its vibration resistance and wide operating temperature range, this panel is suitable for transportation and in-vehicle display systems, ensuring stable operation and reliable information display in complex environments.
l Rail transit control screens
l In-vehicle information terminals
l Bus dispatch systems
Embedded Industrial Systems
The G156BGE-L01 frequently serves as a display module for embedded systems, utilized in various industrial computing platforms and control devices to provide a standardized display solution.
l Industrial embedded motherboards
l All-in-one industrial PCs
l Intelligent edge computing devices
Assembly And Handling Precautions
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within the specified storage conditions.
(10)When ambient temperature is lower than 10℃ may reduce the display quality. For example, the response time will become slowly.
