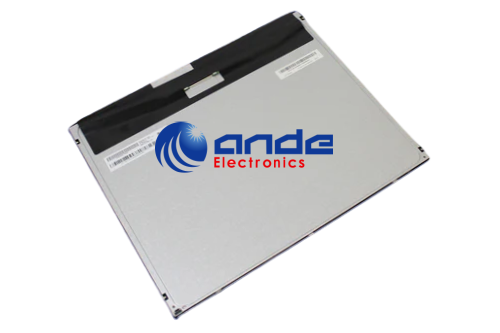

Discover the versatile AUO M170ETN01.1 LCD display!

What fileds can M170ETN01.1 be used in ?

Item	Unit	Specifications
Screen Size	[inch]	17
Native Resolution		1280 X 1024
Active Area	[mm]	337.920(H) X 270.336(V)
Outline dimension	[mm]	358.5(W) X 296.5(H) X 10.3(D)
Bolt Hole Dimension	[mm]	240 X 261
Input Voltage VDD	[Volt]	5V
Screen Wire Harness		FIX-30S-2LVDS
Electrical Interface		Dual channel LVDS
White Luminance	[cd/m2]	250
Contrast Ratio		1000:1
BackLight Connector		H112K-P06N-13B 1.0MM, 6 PIN(MS570EXT)
Backlight Inverter		28.8V/60ma/4 strings, P1/P2/P5/P6=LED-, P3/P4=LED+
Response time, Rising	msec	3.8
Response time, Falling	msec	1.2
Viewing Angle - Horizontal	degree	88
Viewing Angle - Vertical	degree	85

The M170ETN01.1 lcd display is a specific model of TFT-LCD (Thin Film Transistor-Liquid Crystal Display) panel manufactured by AU Optronics Corp(AUO). It is commonly used in various applications such as:

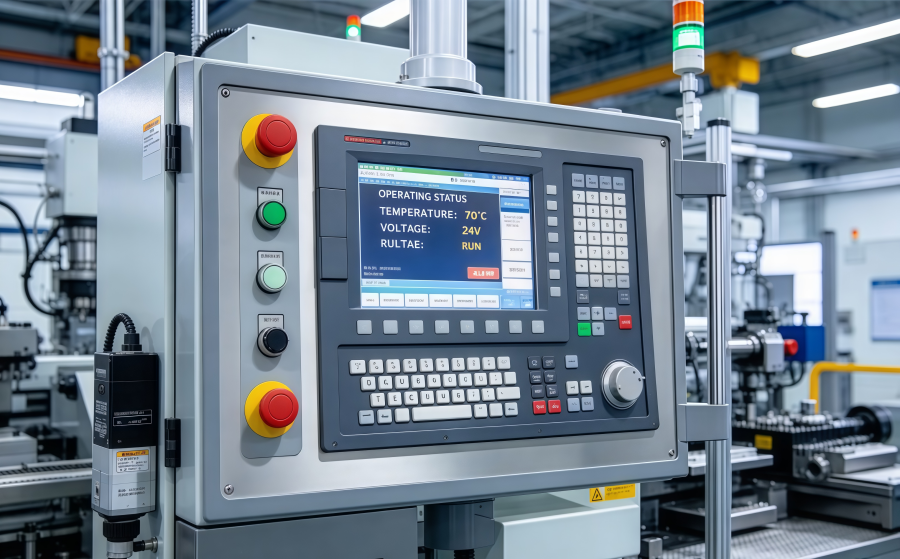

Industrial Displays: It can be used in industrial monitors and control panels for machinery, automation systems, and other industrial equipment.

Medical Displays: These panels are utilized in medical imaging equipment like ultrasound machines, X-ray displays, and medical monitors for diagnostics and patient monitoring.

Gaming Monitors: Some gaming monitors utilize this type of panel for high-quality visual performance and fast response times, enhancing the gaming experience.

Digital Signage: The M170ETN01.1 can be employed in digital signage applications such as advertising displays, information kiosks, and interactive displays.

Point-of-Sale (POS) Systems: It can be integrated into POS terminals and self-service kiosks for retail and hospitality industries.

Aviation and Transportation: TFT-LCD panels are used in cockpit displays, in-flight entertainment systems, and transportation information displays in trains, buses, and other vehicles.

Consumer Electronics: It may also be found in consumer electronics like computer monitors, laptops, and TVs, depending on the specific requirements of the device.

How does it work?

The M170ETN01.1 TFT-LCD panel operates based on the principles of liquid crystal technology and thin-film transistor (TFT) technology. Here's a simplified overview of how it works:

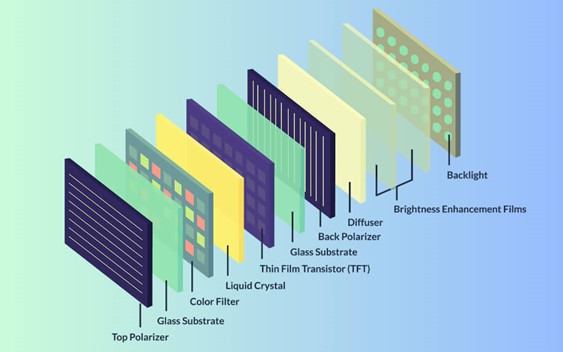

Liquid Crystal Layer: The display consists of a layer of liquid crystal material sandwiched between two glass substrates. The liquid crystal molecules can be aligned and controlled by applying an electric field to them.

Subpixel Structure: Each pixel on the display is composed of three subpixels: red, green, and blue. These subpixels are arranged in a grid pattern across the screen.

Thin-Film Transistors (TFTs): Behind each subpixel, there is a thin-film transistor (TFT) acting as a switch. TFTs are semiconductor devices that can control the flow of electric current to each subpixel individually.

Backlight: Behind the liquid crystal layer, there is a backlight source that provides illumination to the display. This backlight can be either LED (Light Emitting Diode) or CCFL (Cold Cathode Fluorescent Lamp) depending on the specific model.

Pixel Control: When an electric voltage is applied to the TFTs corresponding to each subpixel, they act as switches, allowing or blocking the passage of light from the backlight. By controlling the voltage applied to the TFTs, the amount of light passing through each subpixel can be adjusted, thus controlling the brightness and color of the pixel.

Color Mixing: By varying the intensity of the red, green, and blue subpixels, a wide range of colors can be produced. Different colors are achieved by varying the relative intensities of these three primary colors.

Refresh Rate and Image Processing: The display controller receives input signals, processes them, and sends appropriate voltage signals to the TFTs to refresh the display at a certain rate (usually measured in Hertz). This refresh rate ensures smooth motion and prevents flickering.

Overall, the M170ETN01.1 TFT-LCD panel works by selectively controlling the passage of light through individual subpixels using thin-film transistors, thereby creating images with various colors and brightness levels.

What can M170ETN01.1 helps? Does it suit your project?

The M170ETN01.1 lcd panel can be used in a wide range of products across various industries. Here are some examples:

Industrial Monitors and Control Panels: This TFT-LCD panel can be integrated into industrial monitors and control panels used in factories, manufacturing plants, and other industrial settings for monitoring processes, controlling machinery, and displaying important data and alerts.

Medical Imaging Equipment: It can be utilized in medical imaging equipment such as ultrasound machines, X-ray displays, MRI (Magnetic Resonance Imaging) monitors, and CT (Computed Tomography) scanners for visualizing medical images with high clarity and accuracy.

Gaming Monitors: The M170ETN01.1 panel can contribute to gaming monitors, providing high-resolution displays with fast response times, vibrant colors, and smooth motion rendering for an immersive gaming experience.

Digital Signage Displays: It can be incorporated into digital signage displays used in retail stores, restaurants, airports, train stations, and other public spaces for advertising, information dissemination, wayfinding, and interactive experiences.

Point-of-Sale (POS) Systems: This TFT-LCD panel can be integrated into POS terminals and self-service kiosks used in retail stores, restaurants, and other businesses for processing transactions, displaying product information, and providing interactive services to customers.

Aviation and Transportation Displays: It can be employed in cockpit displays, in-flight entertainment systems, passenger information displays, and navigation systems in aircraft, trains, buses, and other modes of transportation for providing critical information to pilots, crew, and passengers.

Consumer Electronics: The M170ETN01.1 panel can be used in various consumer electronics products such as computer monitors, laptops, TVs, and multimedia devices, offering users high-quality displays for entertainment, productivity, and communication purposes.

These are just a few examples of the products that can benefit from the integration of the M170ETN01.1 TFT-LCD panel. Its versatility, reliability, and performance make it suitable for a wide range of applications across different industries.
