AA121ST01
AA121ST01
AA121ST01
AA121ST01
AA121ST01
  • Mitsubishi AA121ST01
  • Mitsubishi AA121ST01
  • Mitsubishi AA121ST01
  • Mitsubishi AA121ST01
  • Mitsubishi AA121ST01
AA121ST01
Size
12.1"
Resolution
800×600
CR
1000:1
Brightness
600
Interface
LVDS
Max Ratings
Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
Certification
ISO14001:2015 Certification ISO 45001:2018 Certification ISO 9001:2015 Certification
Delivery
Delivery
Payment
Payment

{{title}}
Price not available? Fill in the information below to send a quick RFQ, and we will respond promptly
{{ isClicked ? 'Submitted' : 'Submit RFQ' }}

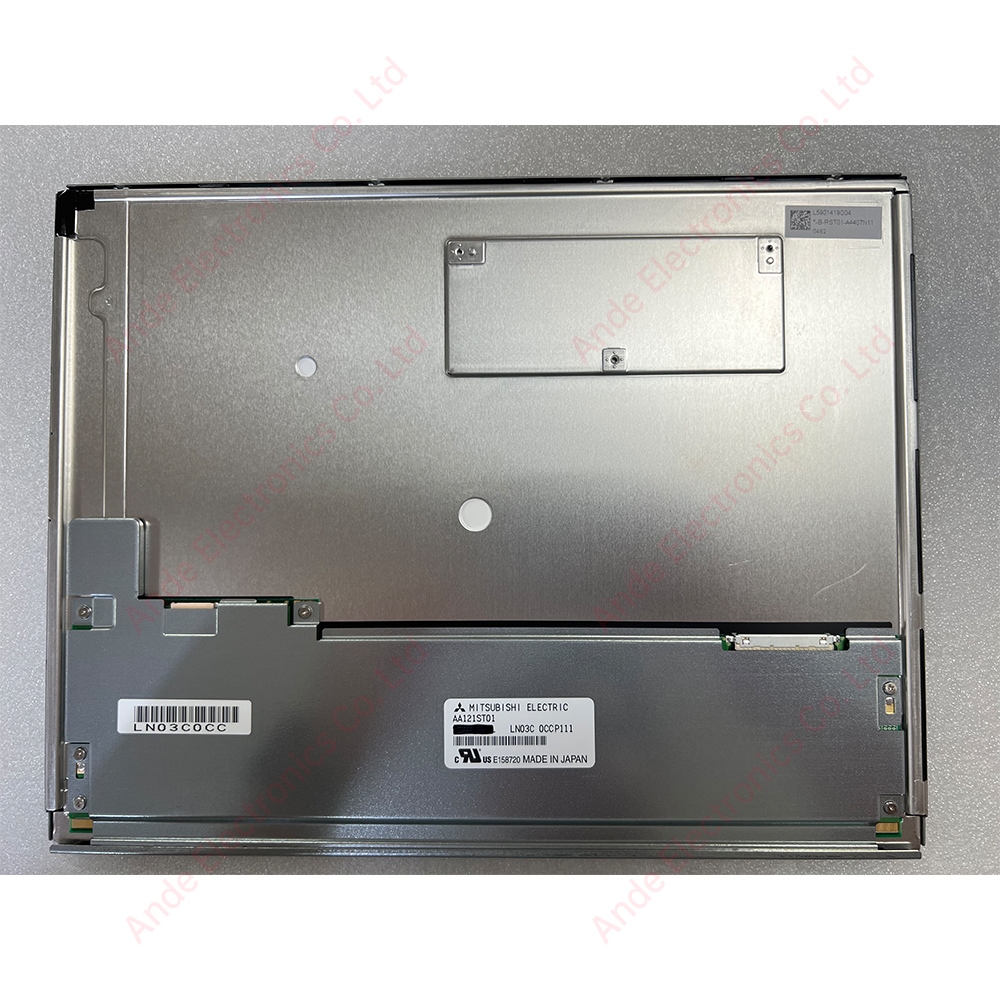

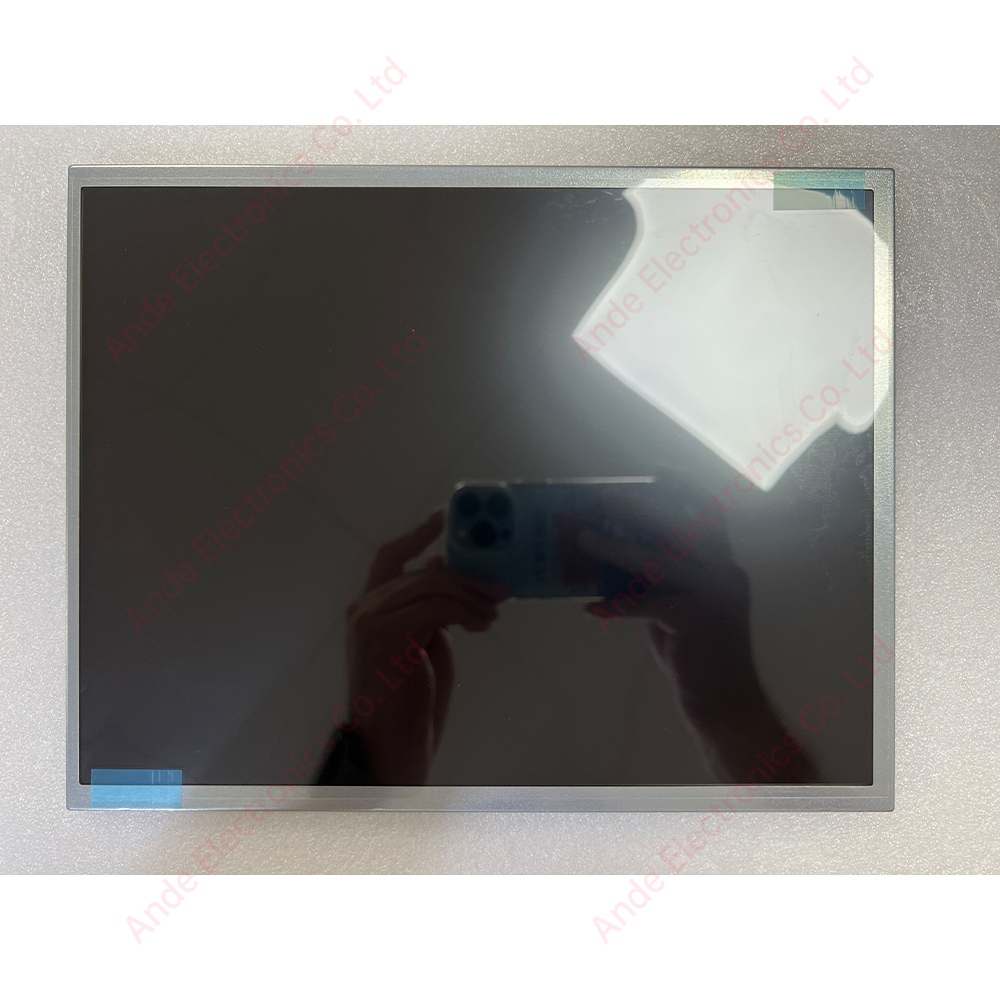

AA121ST01 12.1 Inch SVGA Industrial TFT LCD Display Module

The AA121ST01 is a high-reliability industrial LCD display engineered for demanding environments. With its 600 nits brightness and symmetrical wide viewing angles, the panel delivers excellent readability and image consistency across various industrial applications. Its integrated LED driver, long-life WLED backlight and ultra-wide operating temperature range make it ideal for industrial control systems, medical devices, transportation equipment and rugged embedded platforms.

Specifications
Data Sheet
Advantages
Solutions

1.Decades of Experience

Supplying LCD displays since 1998, ANDE Electronics has built extensive expertise and a reliable network of manufacturers, ensuring high-quality components and solutions.

2.Wide Inventory

We stock LCD displays ranging from 1.3’’ to 65’’, ready for immediate delivery to meet both small-scale and large-scale project needs.

3.Hard-to-Find LCD Stock

Discontinued modules are often difficult to source. ANDE Electronics provides access to hard-to-find LCD stock, helping clients complete projects without delays.

4.Solution Support

Our team assists with LCD screen selection and integration, offering guidance to make sure the right display fits your project requirements.

5.Technical Services

We offer enhancements and add-ons such as touch screen overlays, driver boards, and highlighted features.

6.LCD Touch Sreen Customization

ANDE Electronics provides custom touch solutions, allowing clients to upgrade standard LCD modules with touch functionality tailored to specific applications.

Solutions overview / Healthcare / Manufacturering / New energy / Enterprise

Medical display solutions (12.1"/15"/17"/19"/21.5")

Panel size: 12.1 inches, 15.0 inches, 17.0 inches, 19.0 inches, 21.5 inches

Resolution: 800*600, 640*480, 1024*768

Brightness: 350nit, 400nit, 500nit, 600nit, 700nit

Supported colors: 262K/16.7M 262K/16.2M

Working temperature: -30 ~70°C -20 ~70°C 0 ~ 50 °C

Touch mode: Resistive screen

Interface: LVDS (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Industrial 10.4"/12.1"/15" financial/industrial control monitor

Panel size: 10.4 inches, 12.1 inches, 15 inches

Resolution: 640*480, 1280*800, 1024*768

Brightness: 350nit, 400nit, 550nit, 1000nit, 1500nit

Supported colors: 262K/16.2M

Working temperature: -30 ~ 80 °C -30 ~ 70 °C -20 ~ 70 °C

Touch mode: Resistive screen Capacitive screen

Interface: LVDS, TTL (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Product Overview

  • The Mitsubishi AA121ST01 is a 12.1-inch SVGA industrial TFT LCD module developed for professional equipment requiring reliable image quality, wide viewing angles and stable operation across a broad temperature range.
  • With a native resolution of 800 × 600 pixels and a traditional 4:3 display format, the AA121ST01 is suitable for industrial HMIs, embedded computers, control terminals, medical equipment, transportation systems and other professional applications.
  • The display provides 600 cd/m² typical luminance and a 1000:1 contrast ratio, delivering clear image separation and good readability. Its viewing angle reaches approximately 85° in both horizontal and vertical directions under the specified contrast-ratio condition.
  • The AA121ST01 uses an LVDS 6/8-bit digital interface and an edge-lit white LED backlight. The integrated LED driver supports PWM dimming, while the specified -30°C to +80°C operating temperature range makes the module suitable for demanding industrial environments.

Key Features

12.1-Inch Industrial TFT LCD Module
  • Provides a practical 12.1-inch display size for industrial control systems, embedded computers, medical equipment and professional terminals.
800 × 600 SVGA Resolution
  • Provides clear image presentation in the widely used 4:3 SVGA format for industrial and professional display systems.
600 cd/m² High Brightness
  • Provides enhanced screen visibility for industrial equipment and professional applications requiring higher luminance.
1000:1 Contrast Ratio
  • Provides clear differentiation between bright and dark image areas for improved image quality.
Wide Viewing Angle
  • Provides approximately 85° viewing angles in both horizontal and vertical directions, helping maintain image readability from different positions.
LVDS 6/8-Bit Interface
  • Supports LVDS digital signal transmission with selectable 6-bit or 8-bit color input for flexible system integration.
262K / 16.7M Colors
  • Supports 262K colors with 6-bit input and approximately 16.7M colors with 8-bit input.
WLED Edge-Light Backlight
  • Uses a white LED edge-light backlight with an integrated LED driver, eliminating the need for a separate high-voltage inverter.
Long-Life LED Backlight
  • The LED backlight has a typical operating life of approximately 100,000 hours at 25°C according to Mitsubishi specifications.
Wide Temperature Operation
  • Supports an operating temperature range of -30°C to +80°C, making the module suitable for demanding industrial environments.
Integrated LED Driver
  • The integrated LED driver supports PWM brightness control and simplifies system-level backlight integration.
Anti-Glare Surface
  • Uses an anti-glare and 3H hard-coated surface treatment to reduce reflections and improve surface durability.
Compact Industrial Design
  • The module measures approximately 260.5 × 203.0 × 9.5 mm, providing a compact form factor for embedded equipment.

Applications

Industrial Automation Equipment
  • Suitable for factory automation systems, machine control equipment, PLC interfaces and industrial monitoring systems.
Industrial HMI Systems
  • Ideal for operator panels, control terminals and industrial human-machine interfaces requiring a 12.1-inch SVGA display.
Industrial Computers
  • Suitable for embedded computers, industrial PCs, panel PCs and professional computing equipment.
Medical Equipment
  • Applicable to medical instruments, monitoring equipment and professional healthcare systems requiring a reliable industrial display.
Transportation Equipment
  • Suitable for transportation control systems, vehicle-mounted equipment and professional transportation terminals.
Measurement and Inspection Equipment
  • Applicable to testing instruments, laboratory equipment, inspection systems and industrial measurement devices.
Energy and Power Equipment
  • Suitable for power control terminals, energy monitoring systems and industrial energy equipment.
Security and Monitoring Systems
  • Applicable to surveillance terminals, security equipment and professional monitoring systems.
Embedded Display Systems
  • Suitable for customized embedded products requiring a compact 12.1-inch SVGA TFT LCD.
Industrial Control Panels
  • Suitable for equipment requiring high brightness, wide viewing angles and wide-temperature operation.
OEM and ODM Display Projects
  • Suitable for new product development, LCD replacement, display upgrades and customized industrial display integration.

Why Choose Andesource

  • Professional supplier of industrial LCD displays and embedded modules
  • Original Mitsubishi LCD module sourcing
  • Global sourcing and supply chain support
  • Engineering and integration assistance
  • Technical documentation available
  • LCD replacement and cross-reference solutions
  • Flexible order quantities
  • Competitive pricing for OEMs and distributors
  • Fast international shipping
  • OEM and ODM customization support

FAQ

What is the AA121ST01 LCD module?
  • The AA121ST01 is a 12.1-inch Mitsubishi industrial TFT LCD module designed for industrial control systems, embedded computers, medical equipment, transportation equipment and professional display applications.
What resolution does the AA121ST01 support?
  • The AA121ST01 supports an 800 × 600 SVGA resolution with a traditional 4:3 display format.
What is the brightness of the AA121ST01?
  • The typical luminance is 600 cd/m². Andesource also lists 600 as the brightness specification for this model.
What is the contrast ratio of the AA121ST01?
  • The typical contrast ratio is 1000:1.
What interface does the AA121ST01 use?
  • The AA121ST01 uses an LVDS digital interface supporting 6-bit and 8-bit input.
How many colors does AA121ST01 support?
  • The module supports 262K colors with 6-bit input and approximately 16.7M colors with 8-bit input.
What is the viewing angle of the AA121ST01?
  • The typical viewing angle is approximately 85° in both horizontal and vertical directions under the specified CR ≥ 10 condition.
What type of backlight does the AA121ST01 use?
  • The module uses an edge-lit white LED backlight with an integrated LED driver.
How long is the AA121ST01 LED backlight lifetime?
  • Mitsubishi specifies a typical LED backlight operating life of approximately 100,000 hours at an ambient temperature of 25°C.
What is the operating temperature range of AA121ST01?
  • The AA121ST01 supports an operating temperature range of -30°C to +80°C and a storage temperature range of -30°C to +80°C.
What is the active display area of AA121ST01?
  • The active display area is approximately 246.0 × 184.5 mm.
What are the dimensions of the AA121ST01?
  • The module dimensions are approximately 260.5 × 203.0 × 9.5 mm.
Does AA121ST01 support PWM brightness control?
  • Yes. The integrated LED driver supports PWM light dimming.
Is AA121ST01 suitable for industrial applications?
  • Yes. Its 600 cd/m² brightness, wide viewing angle, LVDS interface, integrated LED driver and -30°C to +80°C operating temperature range make it well suited to industrial applications.
What applications is AA121ST01 suitable for?
  • The module is suitable for industrial HMIs, industrial PCs, factory automation equipment, medical equipment, transportation systems, measurement instruments, security systems and embedded display applications.
Can Andesource provide AA121ST01?
  • Yes. Andesource currently lists AA121ST01 as a 12.1-inch SVGA industrial TFT LCD module and provides RFQ and sourcing support.
Can Andesource provide a replacement or cross-reference solution?
  • Yes. Andesource provides LCD sourcing, replacement and cross-reference solutions based on display size, resolution, interface, mechanical dimensions and optical specifications.
Can Andesource support OEM and ODM display projects?
  • Yes. Andesource supports LCD sourcing, display replacement, touch-screen integration, engineering assistance and customized industrial display projects.
