AA050MG03 Overview
AA050MG03 is a 5.0" color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of an LCD panel, driver ICs, control circuit, and a backlight unit. By applying 8-bit digital data, 800 x 480, 16.7M-color images are displayed on the 5.0" diagonal screen. Input power voltage is 3.3 V for LCD driving.
The type of data and control signals are digital and transmitted via a CMOS interface per Typ. 30.4 MHz clock cycle. Driver circuit for LED backlight is not included in this module.
AA050MG03 Specifications
General specifications of Mitsubishi AA050MG03 LCD are summarized in the following table:
Parameter | Value |
Brand | |
Model | AA050MG03 |
Size | 5" |
Composition | LCM |
Resolution | 800(RGB)×480, WVGA 188PPI |
Luminance | 900 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewangle | 85/85/85/85 |
Color Depth | 16.7M 50% NTSC |
Light Source | 4 strings WLED , No Driver |
Interface Type | CMOS (1 ch, 8-bit) , 45 pins FPC |
Active Area | 110.0(W)×66.8(H) mm |
Pixel Format | RGB Vertical Stripe |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 80.0g (Typ.) |
Outline Size | 118.5 × 84.7 × 5.2 (H×V×D) |
Max Ratings | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
AA050MG03 Hardware and Interface Design
Based on the interface and timing requirements of the AA050MG03 LCD module, a detailed hardware implementation solution is provided below:
Signal Interface & Pinout
AA050MG03 uses a 45-pin FPC 24-bit Parallel RGB interface, supporting R[0..7], G[0..7], and B[0..7] data transmission with DCLK, DE, HSYNC, and VSYNC control signals. For 18-bit color systems, the module can be compatible by connecting the upper 6 data bits. The DE mode is recommended to reduce display issues caused by synchronization errors. For hardware design, maintain signal integrity by adding 22Ω–33Ω series damping resistors on the 30.4MHz DCLK line, applying length matching, and using ground shielding to improve EMI performance and display stability.
Timing Specifications
AA050MG03 supports a typical 60Hz refresh rate with a DCLK frequency of around 30.4MHz (25–36MHz range), ensuring stable 800×480 image refreshing through proper line and frame timing control. RGB data and DE signals must meet strict setup and hold time requirements for accurate sampling. A complete GND reference plane should be maintained, signal layer splitting should be avoided, and low-capacitance TVS protection devices should be added at the FPC interface to reduce EMI interference and ESD risks.
Power On/Off Sequence
AA050MG03 requires a strict power sequence to prevent display failures such as latch-up, white screen, or IC damage. During power-on, the 3.3V VCC supply should be enabled first. After voltage stabilization, RGB data, DCLK, and DE signals can be applied, followed by a delay of at least 200ms before enabling the WLED backlight. During power-off, disable the backlight first, stop display signals after the screen turns off, and then remove the 3.3V logic power to ensure stable operation and extend module lifetime.
AA050MG03 Optical Tuning
AA050MG03 focuses on brightness, contrast, and viewing angle optimization. Through improved LCD structure and backlight design, it delivers stable image quality for various industrial environments.
l Normally Black Mode: AA050MG03 adopts a Normally Black display mode. When powered off, the liquid crystal blocks the backlight effectively, reducing light leakage and improving black levels and contrast compared with traditional Normally White displays.
l Viewing Angle & Anti-Glare: AA050MG03 provides a near full viewing angle of 85°/85°/85°/85°, allowing clear viewing from different directions. The display surface features Anti-Glare treatment, improving readability in outdoor and high-light environments.
l LED Backlight Circuit: AA050MG03 uses a constant-current LED backlight design with a Boost driver circuit to stabilize WLED current, reducing brightness fluctuation and color shift caused by temperature changes. A high-frequency PWM dimming range of 1kHz–20kHz is recommended to minimize low-frequency flicker.
AA050MG03 Functional Block Diagram

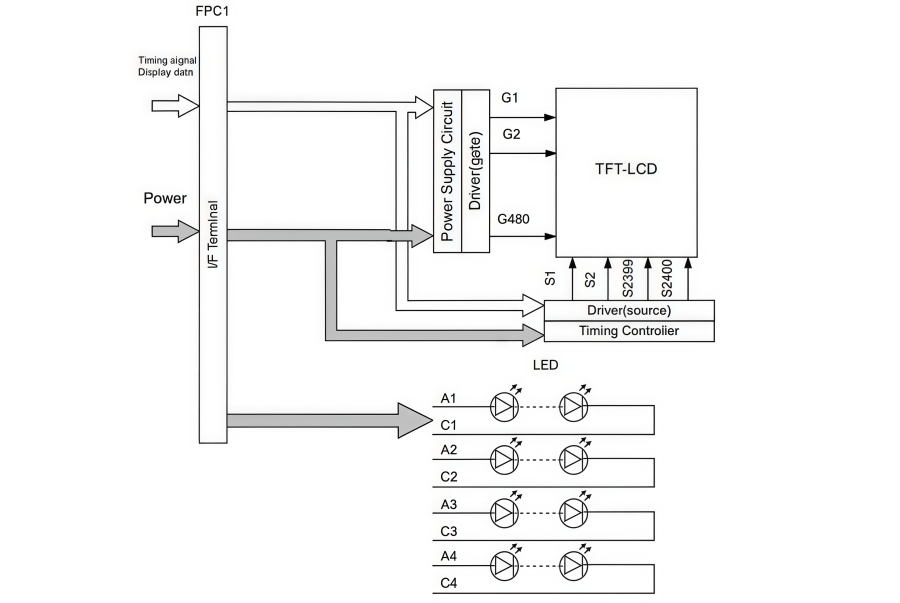

The system block diagram illustrates the internal structure and signal flow of the AA050MG03 module. External Timing signals, Display data, and power inputs are supplied through the FPC1 interface. The logic and data signals are then transferred to the Gate driver circuit and the Source driver circuit with integrated Timing Controller, while the power supply provides energy to the Power Supply Circuit, driver ICs, and other internal components.
The Gate driver generates G1 to G480 scanning signals, and the Source driver outputs S1 to S2400 source signals (corresponding to 800 × 3 RGB pixels) to control the TFT-LCD pixel array. In addition, the FPC1 interface provides dedicated lines (A1-C1 to A4-C4) to drive the four WLED backlight strips arranged in parallel/series configuration.
AA050MG03 Application Fields
The AA050MG03 LCD display is widely used in various embedded and industrial display applications. Understanding the display requirements in different scenarios helps maximize the performance and advantages of the AA050MG03 module.
1. Industrial Automation Control Systems
AA050MG03 is suitable for human-machine interface (HMI) applications in industrial automation equipment, displaying production parameters, equipment status, alarm information, and operation menus.
l PLC control terminals
l Automated production line operation panels
l Industrial robot controllers
2. Industrial Testing and Measurement Equipment
In industrial testing applications, AA050MG03 can display real-time measurement data, test results, and equipment status. Its clear image quality and wide viewing angle help operators quickly read information and improve work efficiency.
l Industrial testing instruments
l Quality inspection equipment
l Environmental monitoring equipment
3. Industrial Equipment Monitoring and Management Terminals
AA050MG03 can serve as a display module for industrial equipment, providing real-time monitoring of key parameters such as temperature, pressure, current, and operating status. Its reliable performance and easy integration make it suitable for smart manufacturing and equipment management systems.
l Smart electrical cabinet displays
l Equipment status monitoring terminals
l Industrial data acquisition devices
4. Industrial Embedded Devices and Control Platforms
With its compact 5-inch design and RGB interface, AA050MG03 is ideal for space-limited industrial equipment, providing graphical user interfaces for control commands, device settings, and real-time feedback.
l Industrial panel PCs
l Embedded controllers
l Smart manufacturing terminals
AA050MG03 Datasheet
You can refer to the official datasheet of G084SN03 V3 LCD to see more details below:
AA050MG03 Outline Dimensions

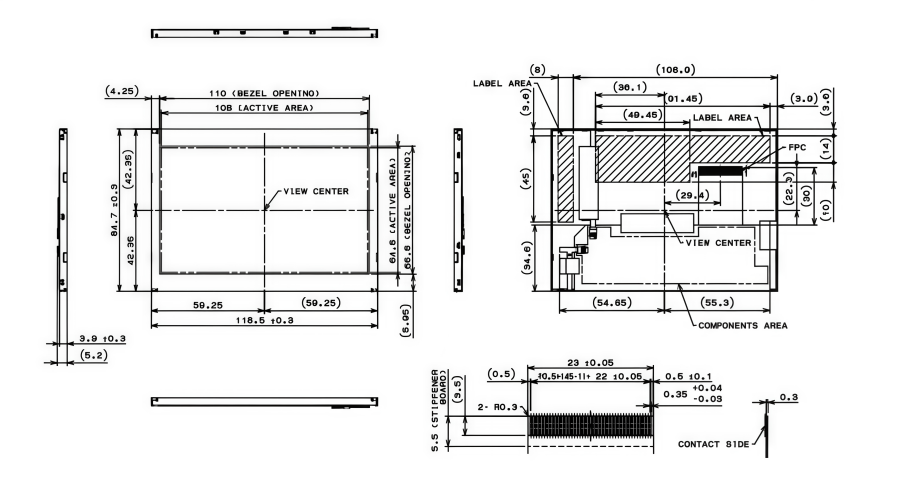

Understanding the AA050MG03 dimensions, active display area, thickness, mounting holes, and FPC position helps engineers optimize mechanical design and system layout.
Handling Precautions
1) Turn off the power before connecting or disconnecting signal cables or LED backlight cables to avoid module damage.
2) Do not adjust the variable resistors inside the LCD module, as they are factory-calibrated for optimal performance.
3) Pay attention to high-speed signal design, including transmission lines and impedance control, to ensure signal integrity.
4) Avoid sudden temperature changes that may cause condensation on or inside the LCD module.
5) Do not display a fixed image for a long time. Use a screensaver or image rotation function to prevent image sticking.
6) Handle the LCD module according to standard electronic component safety practices.
7) The module contains CMOS ICs and TFT components that are sensitive to electrostatic discharge (ESD). Use proper grounding and ESD protection during handling.
8) Remove the protective film slowly to prevent static generation and surface damage.
9) Store LCD modules in a normal temperature and humidity environment, following the first-in-first-out (FIFO) inventory method.
10) When disposing of damaged LCDs, handle glass and liquid materials safely according to local regulations.
11) If liquid leaks from a damaged LCD cell, avoid direct contact and wash the affected area thoroughly with soap and water.
12) Design the LED driver with over-current protection to prevent backlight damage.
