What Is the TM035KDH03 TFT-LCD Display?
The TM035KDH03 is a 3.5-inch TFT-LCD display module from Tianma. It uses a-Si TFT technology and features a 320 × 240 (QVGA) resolution with 16.7M colors. The module uses a TN, Normally White, Transmissive display mode and WLED backlight, providing clear color images in compact devices.
The TM035KDH03 features a 54-pin FPC interface and supports Digital RGB, SPI, and CCIR601/656 interfaces. It also integrates a driver IC. In practical engineering applications, the TM035KDH03 can be configured with Digital RGB or MCU interfaces for connection to hardware platforms such as MCUs, ARM processors, or Raspberry Pi. The module typically includes an LED backlight assembly and driver circuitry, while some versions may also integrate resistive or capacitive touch panels.
TM035KDH03 Key Specifications
Below are the key specifications of the TM035KDH03, providing a clear overview of its performance and application requirements.
Parameter | Specification |
Model | TM035KDH03 |
Brand | |
Display Size | 3.5" |
Composition | LCM |
Resolution | 320(RGB)×240, QVGA 115PPI |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
Viewing Angle | 70/70/60/70 |
Color Depth | 16.7M 50% NTSC |
Light Source | 6S1P WLED , 20K hours , No Driver |
Interface Type | Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC 54 pins |
Pixel Format | RGB Vertical Stripe |
Active Area | 72.88(W)×55.36(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 30.0g (Typ.) |
Outline Size | 76.9×63.9×3.35 (H×V×D) |
Max Ratings | Operating Temp.: -30 ~ 80 °C ; |
TM035KDH03 Display Performance and Optical Characteristics
The TM035KDH03 is designed to balance low power consumption and clear image quality, making it suitable for indoor and light outdoor HMI applications. Its key display and optical parameters are outlined below.
Drive Interface and Hardware Compatibility
The module uses a standard 50-pin Digital RGB interface (24-bit/18-bit) and can connect to popular MCUs and embedded processors such as STM32, ESP32, and NXP i.MX series. The built-in display driver includes basic timing control and bias voltage generation, simplifying driver development.
Power Management and Thermal Control
Designed for handheld devices, the TM035KDH03 is optimized for low power consumption. Its backlight typically uses six LEDs in series or parallel, with an operating current of around 20 mA and total power consumption below 0.5 W, making it suitable for battery-powered terminals.
Environmental Performance and Mechanical Design
The module features a compact design and operates from -20°C to +70°C, with a storage temperature range of -30℃ to +80℃. It offers good resistance to vibration and interference and can be used in outdoor environments with appropriate structural protection.
TM035KDH03 Backlight and Power Requirements
The TM035KDH03 backlight typically uses six high-brightness white LEDs (WLEDs), usually connected in series. Under standard conditions, the backlight current is 20 mA, with a typical forward voltage of 18–20 V.
For logic and LCD power, the module uses a standard 3.3 V (VCC/VDD) supply, with only a few milliamps of operating current. In some designs, if the driver IC does not include a boost circuit, external circuitry may be required to provide bias voltages such as VGH (about 15 V) and VGL (about -10 V).
The total module power consumption, including the backlight, is typically around 0.4–0.5 W. For PCB layout, keep the backlight boost circuit away from sensitive RGB signal lines and use proper power filtering to reduce switching noise and display interference.

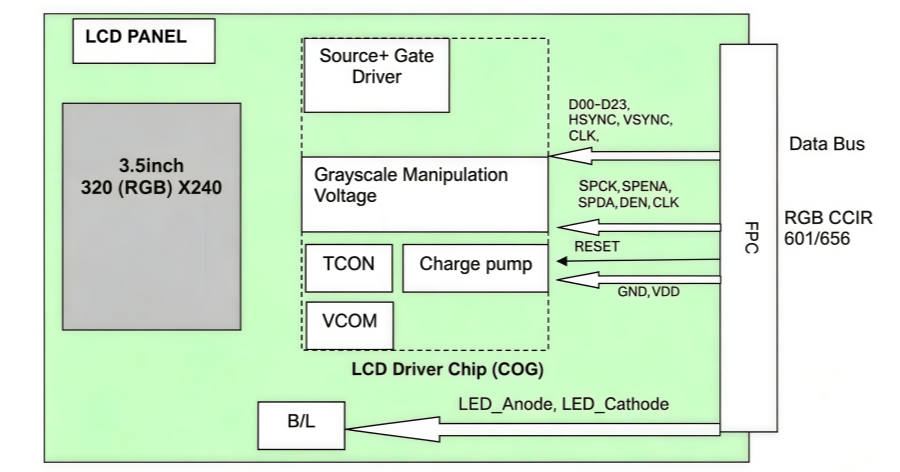

TM035KDH03 Block Diagram
The TM035KDH03 display module consists mainly of a 3.5-inch LCD panel (320 × 240), COG LCD driver IC, backlight unit (B/L), and FPC interface. The main board sends 24-bit RGB/CCIR image data (D00–D23), timing signals (HSYNC, VSYNC, CLK), SPI configuration signals, power, and backlight control through the FPC. The integrated Source/Gate Driver, TCON, grayscale voltage, charge pump, and VCOM circuits work together to control the LCD pixels and display images.
Compact and Clear: TM035KDH03 for Handheld & PDA Devices
The TM035KDH03 LCD provides clear color images in limited device spaces, making it suitable for portable devices that require a compact design, low power consumption, and stable display performance.
1. Handheld Terminals
The TM035KDH03 can be used in various handheld terminals to display basic information such as menus, data, device status, and operating interfaces.
l Industrial handheld terminals
l Portable data collection devices
l Handheld control terminals
2. PDA and Mobile Computing Devices
For PDAs and other compact mobile computing devices, the TM035KDH03 can display application menus, text information, icons, and simple graphic interfaces.
l Personal digital assistants (PDAs)
l Portable information terminals
l Compact mobile computing devices
3. Portable Imaging and Monitoring Devices
The TM035KDH03 is also suitable for portable products that require real-time image or device status viewing. Its color display can show camera preview images, monitoring data, and system status, providing users with a clear and intuitive interface.
l Digital still cameras
l Portable video cameras
l Handheld monitoring devices
Sharp Image Display for Digital Still Cameras with TM035KDH03
The TM035KDH03 can provide clear color images for digital cameras and can be used for functions such as photo preview, shooting parameter display, and menu operation.
1. Photo Preview and Image Viewing
The TM035KDH03 can be used for photo preview and image viewing on digital cameras, allowing users to review photos directly after shooting.
l Digital still cameras
l Compact digital cameras
l Portable photo cameras
2. Camera Menu and Settings
The TM035KDH03 can also display camera menus, shooting modes, exposure parameters, storage status, and other operating information. Its LCD provides an intuitive graphical interface, making it easier for users to adjust camera settings.
l Camera setting interfaces
l Shooting mode displays
l Photo management menus
Reliable Viewing for Digital Video Cameras with TM035KDH03
In digital video applications, the TM035KDH03 LCD can be used for real-time video preview, video playback, and shooting status display while maintaining a compact device size.
1. Real-Time Video Preview
The TM035KDH03 can serve as a real-time preview display for digital video cameras, showing captured images to users and helping them adjust the shooting angle and composition during recording.
l Digital video cameras
l Handheld camcorders
l Portable video recording devices
2. Video Playback and Review
After video recording, the TM035KDH03 can be used to play back and review recorded content. Its color LCD provides clear image information, allowing users to quickly check the recording results.
l Portable video recorders
l Consumer camcorders
l Compact video cameras
3. Shooting Status and Control Interface
The TM035KDH03 can also display recording time, shooting mode, battery status, storage capacity, and other information, while providing menu and control interfaces. This integrated display helps users operate and manage video devices more easily.
l Camera control panels
l Video recording interfaces
l Portable monitoring devices

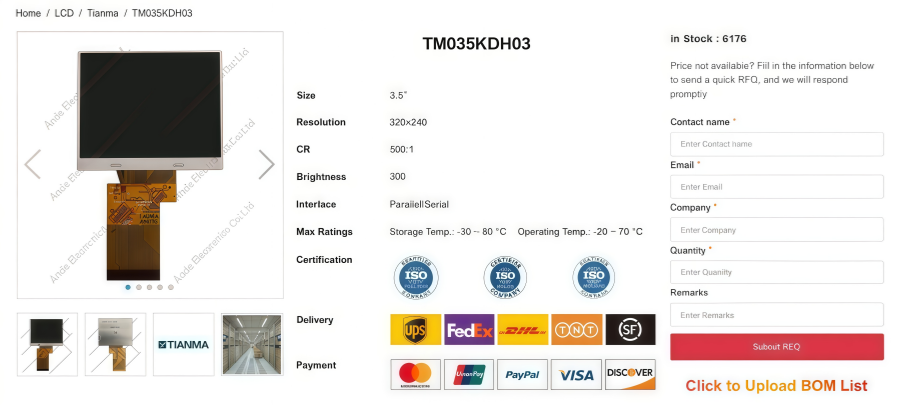

TM035KDH03 Datasheet
FAQs
What is the TM035KDH03?
The TM035KDH03 is a 3.5'' TFT-LCD module from Tianma. It features a 320 ×240 QVGA resolution, TN display technology, WLED backlight, and a 54-pin FPC interface.
What interface does the TM035KDH03 use?
The TM035KDH03 supports Digital RGB, SPI, and CCIR601/656 interfaces through its 54-pin FPC connection.
What type of backlight does the TM035KDH03 use?
The TM035KDH03 uses a white LED (WLED) backlight with a 6S1P LED configuration. The typical backlight forward current is 20 mA.
Does the TM035KDH03 have a touchscreen?
The standard TM035KDH03 specification does not list a touchscreen. Any touch-enabled variant should be verified separately based on its exact part number and datasheet.
