In modern medicine, especially in the field of gynecological examinations and diagnostics, LCD screens and gynecological ultrasound monitors are closely related and have significant applications.
LCD (Liquid Crystal Display) is a device that displays images using the electro-optical effect of liquid crystal material, commonly used in various electronic display devices. The following are four major advantages: high resolution, providing clear and detailed image quality, capable of displaying subtle image details; low power consumption, compared to other display technologies, LCD have lower energy consumption, making them suitable for prolonged use; wide viewing angle, modern LCD technology offers a broader viewing angle, suitable for multi-angle observation; high contrast, providing better visual effects when displaying dynamic videos and images.

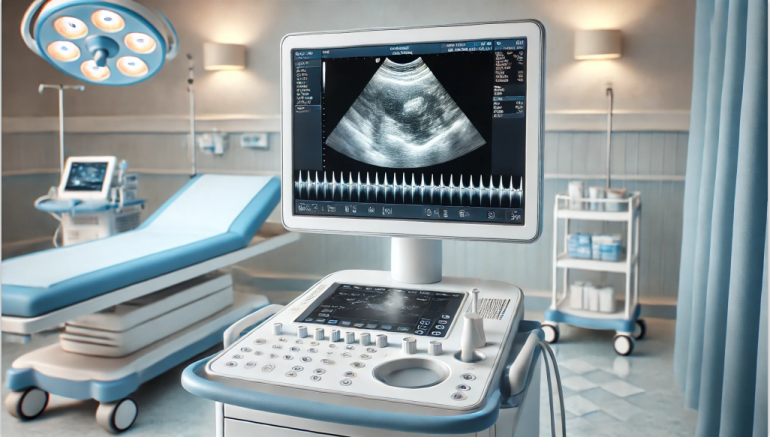

Gynecological ultrasound monitors, on the other hand, combine ultrasound imaging technology with gynecological examination equipment's display terminal, specifically used for diagnosing and examining gynecological diseases. They also have the following advantages: real-time imaging, providing real-time images of internal organs such as the uterus and ovaries, facilitating real-time observation and diagnosis by doctors; non-invasive and portable, ultrasound imaging technology is non-invasive, requires no surgery or radiation, poses no harm to patients, and is usually designed to be portable, making it easy to move between different examination rooms; high resolution, combined with high-resolution LCD, capable of displaying clear images of internal structures.
Connection and Specific Applications:
1. Real-time Diagnosis:
Instant Feedback:The gynecological ultrasound monitor obtains internal images through the ultrasound probe, transmitting them in real-time to the LCD screen, allowing doctors to immediately view the images and make a diagnosis.
Dynamic Observation: The LCD screen displays the dynamic video of ultrasound imaging, enabling doctors to observe real-time changes in tissues such as the uterus and ovaries for dynamic monitoring.
2. Patient Communication:
Image Display: The LCD screen can intuitively display examination results, allowing doctors to explain the condition to patients through the screen, making it easier for patients to understand the examination results.
Treatment Discussion:Through clear image display, doctors can discuss treatment plans with patients, increasing patient trust and cooperation with the treatment.
3. Surgical Assistance:

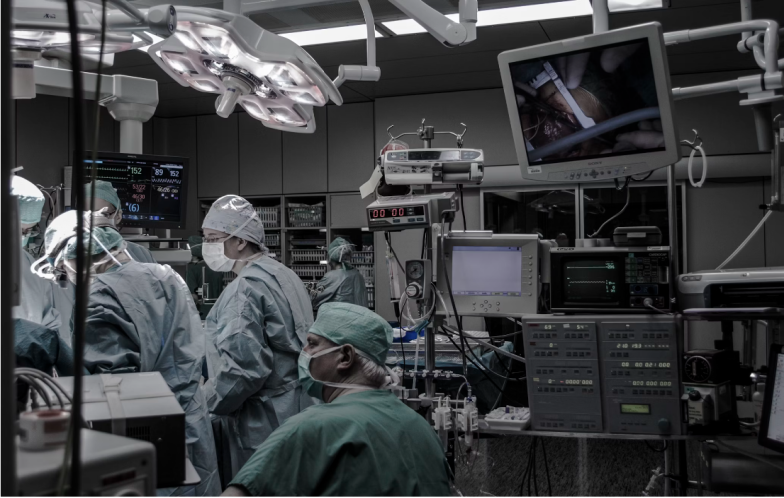

Intraoperative navigation:During gynecological surgeries, the gynecological ultrasound monitor provides real-time imaging, with the LCD screen displaying the internal structure images of the surgical site, helping doctors perform precise surgical operations.
Postoperative Evaluation: After surgery, the LCD screen is used to view postoperative images, evaluate the surgical effect, and ensure surgical success.
4. Teaching and Training:
Teaching Tool: In medical education, LCD screens are used to display real-time images from the gynecological ultrasound monitor, helping students understand and learn ultrasound imaging technology and its applications.
Training Simulation:Through simulated examination and surgical scenarios, LCD screens provide realistic imaging effects, aiding medical students and interns in practical training.
LCD screens and gynecological ultrasound monitors play an important role in gynecological diagnosis and treatment. With their high resolution and real-time display capabilities, LCD screens greatly enhance the application effectiveness of gynecological ultrasound monitors, aiding doctors in making more accurate diagnoses and treatments. Additionally, in patient communication, surgical assistance, and medical education, the combination of LCD screens and gynecological ultrasound monitors demonstrates significant advantages, providing robust technical support for modern gynecological healthcare.
Application of 21.5-inch LCD Display in Medical Monitors: Real-world Example
Accurate and reliable medical LCD displays are crucial for imaging diagnostics and patient monitoring in the medical field. The 21.5-inch medical LCD display features FHD high-definition image quality, supports medical ID mold design, is equipped with an IPS LCD panel, and utilizes high-precision color processing technology to present more realistic images. This is essential for interpreting medical images. Its high resolution allows for detailed image analysis, while the wide viewing angle ensures that medical professionals can view the display from different positions without compromising image quality. Additionally, doctors can effectively track patient vitals through the medical LCD display.
Model Name | MS2210A |
Resolution | 1920 x 1080 dots (FHD) |
Pixel Pitch | 0.248(H) x 0.248(V) mm |
Size | 21.5Inch (54.61 cm diagonal |
Aspect Ratio | 16:9 |
White Luminance | 1000 Typ. , 300 Min. cd/m² |
Preset Brightness | Gamma2.2 (default), L max = 200±10 cd/m2(white Picture) |
Contrast Ratio | 1000:1 (Typ.), 700:1(Min.) |
Color depth | 16.7colors, true 8 bit |
Viewing Angle | R/L 178 degree (Typ.), U/D 178 degree (Typ.) |
Backlight | LED with PWM dimming |
Brightness uniformity | δW = 1.25 Typ. |
Signal Interface | HDMI x 1 |
VGA x 1, support up to FHD | |
DC Power Jack |
Specifications of the 21.5-inch LCD Display as Shown in the Above Image
Our company is dedicated to providing high-quality LCD displays and electronic components to meet the needs of various medical devices. Our range of LCD displays has been widely used in major medical institutions. We are committed to offering comprehensive technical support and solutions to our customers. We warmly invite medical institutions to contact us to explore collaboration opportunities, enhancing healthcare service quality and patient experience.
