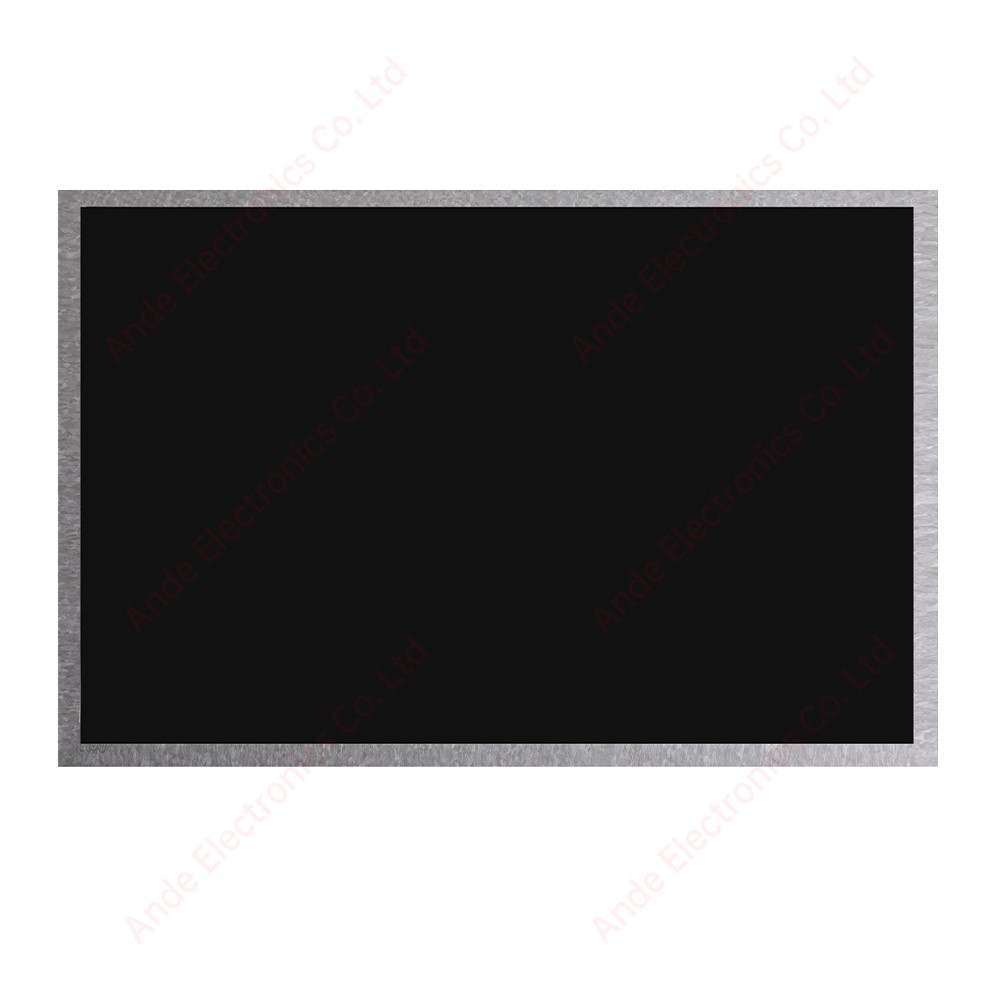

The G101EVN01.0 LCD Display: A Comprehensive Review
In the rapidly evolving world of display technology, the G101EVN01.0 LCD display stands out as a product that combines cutting-edge technology with exceptional performance. This display, designed for various applications, offers impressive specifications that make it a top choice for both industrial medical LCD display and consumer use. In this comprehensive review, we will delve into the key features, technical specifications, and potential applications of the G101EVN01.0, highlighting why it is a valuable addition to the market.
Key Features of the G101EVN01.0 LCD Display
The G101EVN01.0 LCD module boasts a range of features that cater to diverse needs. One of its standout characteristics is its high resolution of 1280 x 800 pixels, which ensures clear and sharp image quality. This level of resolution is particularly advantageous for applications requiring detailed visual representation, such as medical LCD display imaging, industrial monitoring, and high-end consumer electronics.
Another notable feature is its impressive brightness of 400 nits. This high brightness level ensures excellent visibility even in brightly lit environments, making it ideal for outdoor applications and settings with significant ambient light. Additionally, LCD monitors offer a wide viewing angle of 85 degrees in all directions (left, right, up, down), ensuring consistent image quality from various perspectives. This feature is particularly beneficial for collaborative environments where multiple users need to view the display simultaneously.

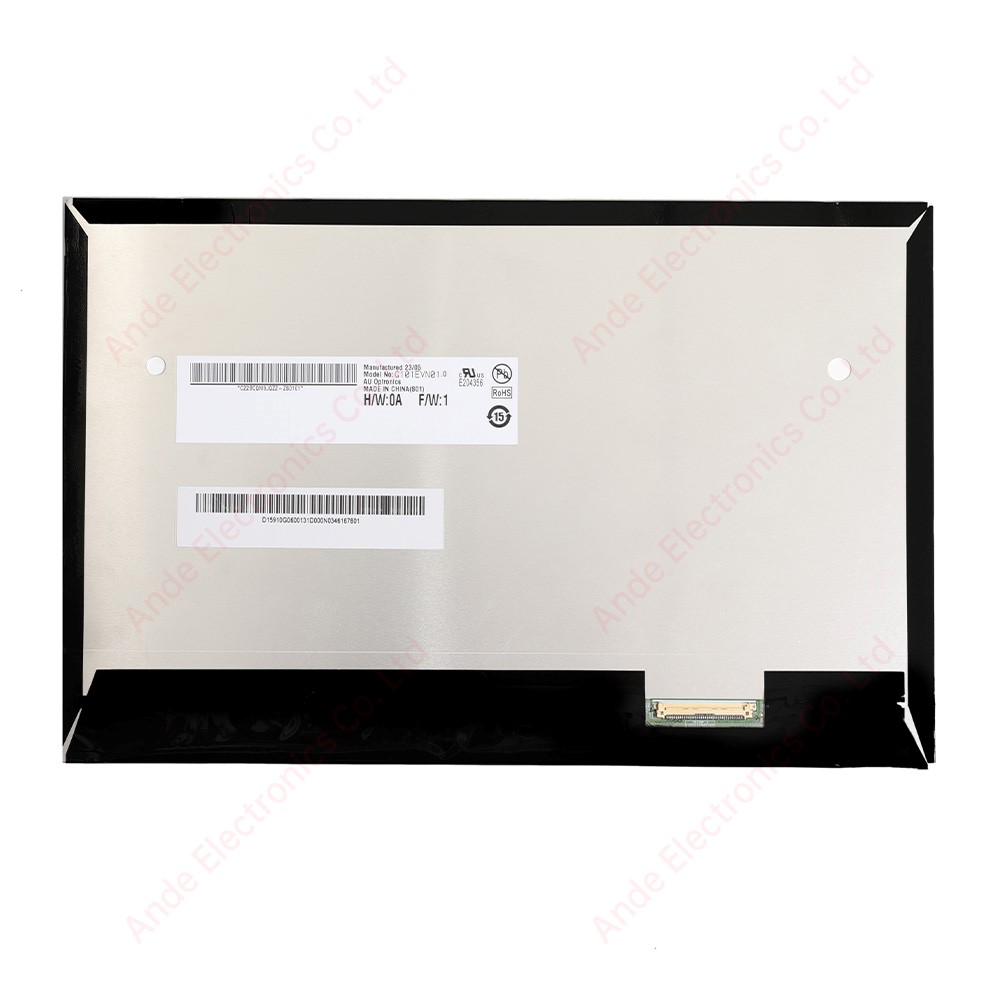

Technical Specifications
| Type | Description |
|---|---|
| Brand | AUO |
| Model | G101EVN01.0 |
| Size | 10.1" |
| Composition | LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| View Angle | 85/85/85/85 |
| Color Depth | 262K 45% NTSC |
| Light Source | WLED, 15K hours, With LED Driver |
| Interface Type | LVDS (1 ch, 6-bit), 40 pins Connector |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 220.36(W)×139.1(H) mm |
| Frame Rate | 60Hz |
| Touchscreen | Without |
| Voltage Supply | 3.3V (Typ.) |
| Weight | 187g (Max.) |
| Outline Size | 229.46 × 149.2 × 4.96 (H×V×D) |
| Max Ratings | Storage Temp.: -30 ~ 70 °C, Operating Temp.: -20 ~ 60 °C |
Applications of the G101EVN01.0 LCD Display
Industrial Control and Automation
In industrial settings, displays are crucial for monitoring and controlling various processes. The G101EVN01.0’s high resolution and wide viewing angles make it an excellent choice for control panels and monitoring systems. Its brightness ensures visibility even in environments with varying light conditions, while the robust build quality ensures durability in demanding industrial environments.
Medical Imaging
Accurate and reliable medical LCD display is essential in the medical field for diagnostic imaging and patient monitoring. The G101EVN01.0’s IPS medical LCD display provides consistent and accurate colors, which are critical for interpreting medical images. Its high resolution allows for detailed image analysis, while the wide viewing angles ensure that medical professionals can view the display from different positions without compromising image quality. The doctors can also keep track of the physical index of patients effectively.
Consumer Electronics
For consumer electronics such as tablets, laptops, and gaming devices, the G101EVN01.0 offers a combination of high resolution, bright display, and wide viewing angles. These features enhance the user experience, whether it’s for streaming videos, playing games, or browsing the web. The slim profile and energy-efficient LED backlight also contribute to longer battery life and sleeker device designs.
Digital Signage
In the realm of digital signage, visibility and image quality are paramount. The G101EVN01.0’s high brightness and wide viewing angles ensure that advertisements and information displays are clear and readable from various distances and angles. This makes it an ideal choice for retail environments, transportation hubs, and public spaces.
LCD Monitors Dominate the Future
The G101EVN01.0 LCD display is a versatile and high-performing product that meets the demands of various professional and consumer applications. Its combination of high resolution, impressive brightness, wide viewing angles, and reliable technology makes it a standout choice in the market. Whether it’s for industrial control, medical imaging, consumer electronics, or digital signage, the G101EVN01.0 delivers exceptional performance and reliability.
As display technology continues to advance, products like the G101EVN01.0 set the standard for quality and innovation. Investing in this display means investing in superior visual experiences and reliable performance, making it a valuable addition to any application requiring top-notch display technology.
