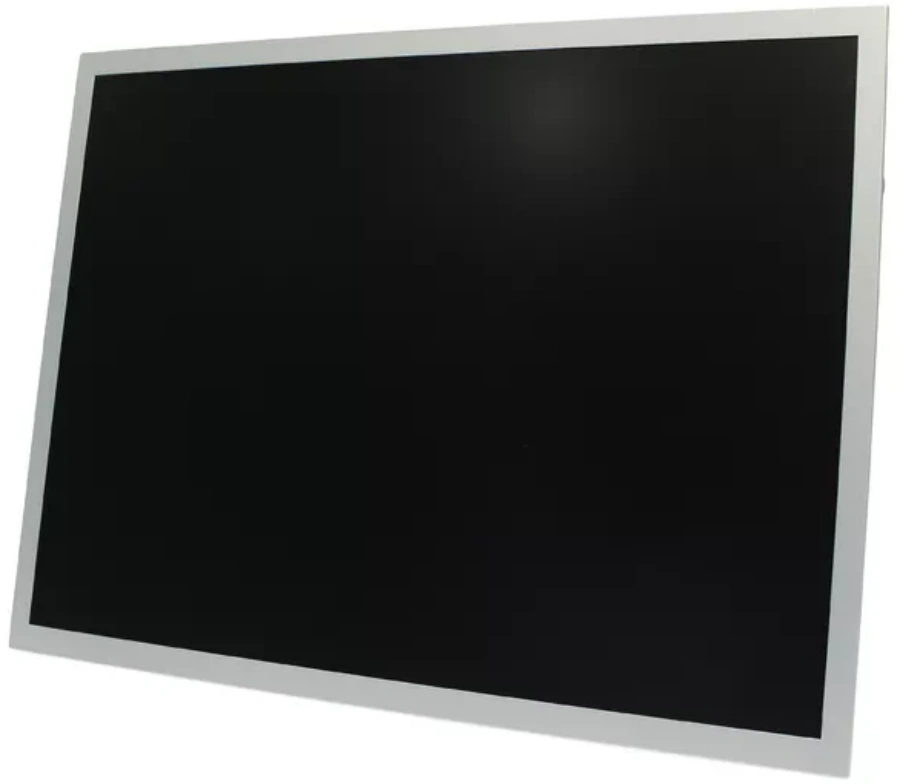

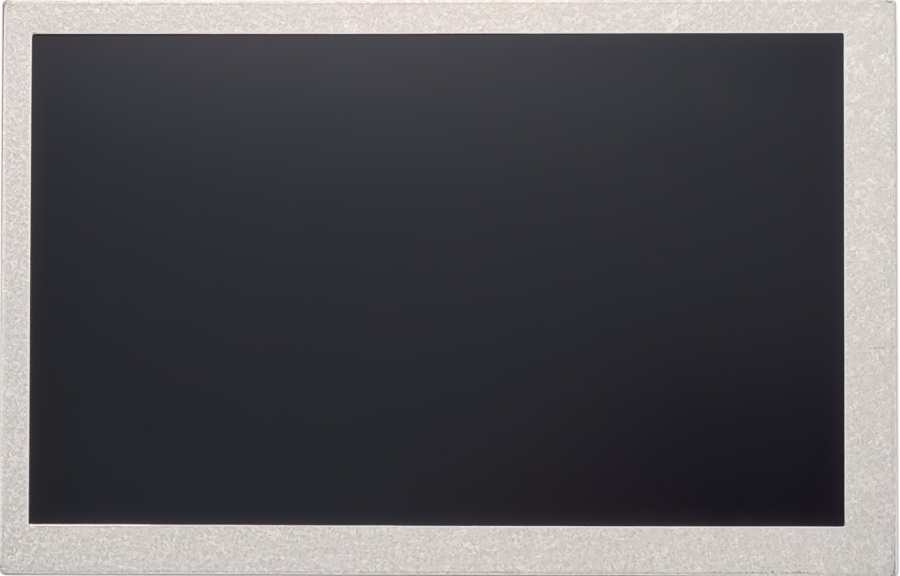

The TM070JDHG30 is a high-performing, rugged LCD module tailored for applications demanding clarity, durability, and efficiency. Its combination of modern features, such as SFT technology, energy-efficient design, and robust environmental tolerances, makes it a standout choice for industrial, medical, and automotive markets. Whether used in rugged environments or precise medical instruments, this module excels in both functionality and reliability.
At ANDESOURCE, we are dedicated to offering high-quality LCDs like the TM070JDHG30, supported by a dependable supply chain, rigorous quality assurance,fast delivery, and highly competitive pricing.
Now, let's dive into the specifications and key advantages of the TM070JDHG30.
General Specification
Features | Spec |
Size | 7 inch |
Resolution | 1280(RGB) x 800 |
Luminance | 400 cd/m² (Typ.) |
Technology Type | a-Si |
Pixel Pitch(mm) | 0.117 x 0.117 |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Pixel Configuration | R.G.B. Vertical Stripe |
Display Mode | SFT with Normally Black |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Surface Treatment(Up Polarizer) | HC |
LCM (W x H x D) (mm) | 161.0×107.0×3.35(Typ) |
Active Area(W x H) (mm) | 149.76 × 93.60 |
LED Numbers | 21 LEDs |
Matching Connector Type | Molex 54132-4062 |
Weight(g) | 120 (Typ) |
Operation temperature | -20~70℃ |
Storage temperature | -30~80℃ |
Interface | LVDS 40 Pin |
Color Depth | 16.7M |
Driver IC | 3*ST5821C and 1*ST5084C |
Key Advantages of the TM070JDHG30
High-Performance Display with Superior Uniformity
The TM070JDHG30 delivers sharp and detailed visuals with a 1280 (RGB) x 800 resolution, enhanced by its 800:1 contrast ratio and vibrant 16.7M color depth. Its 400 cd/m² brightness ensures excellent visibility in moderately lit environments, while a uniformity of ≥ 75% guarantees consistent luminance across the entire screen. This uniform brightness is critical for applications like control systems and diagnostic displays, where even illumination enhances readability and reduces eye strain.
Adding to its capabilities, the TM070JDHG30 incorporates 21 high-efficiency LEDs for backlighting. This design not only supports uniform brightness but also extends the display’s longevity, making it a reliable solution for continuous operation.
Versatility with Wide Viewing Angles
A key highlight of the TM070JDHG30 is its SFT (Super Fine TFT) technology, enabling 88° viewing angles from all directions. This ensures that images remain sharp and colors consistent, regardless of the user’s position. The wide viewing angles make it an excellent choice for shared screens in control rooms, indoor public information kiosks, and automotive dashboards, where multiple viewers need clear visuals simultaneously.
Built to Thrive in Harsh Environments
Industrial environments demand rugged and reliable equipment, and the TM070JDHG30 excels in this regard. With an operating temperature range of -20°C to 70°C and a storage range of -30°C to 80°C, the module is built to withstand extreme temperature fluctuations. Additionally, it has been rigorously tested for shock, vibration, and electrostatic discharge (ESD) to ensure long-term reliability.
Energy Efficiency and Longevity
The TM070JDHG30 is engineered for energy efficiency. Its low power consumption (1.3W typical for the backlight) makes it an ideal choice for applications where minimizing energy usage is critical. Moreover, its LED backlight offers a lifespan of 30,000 hours, ensuring long-term operation with minimal maintenance.
This combination of efficiency and durability is particularly valuable in portable devices, handheld tools, and battery-operated equipment, where reliability and energy optimization are crucial.
Sleek and Lightweight Design
Weighing just 120g and measuring a compact 161.0 × 107.0 × 3.35 mm, the TM070JDHG30 is both lightweight and slim. This makes it easy to integrate into space-constrained applications such as embedded systems, portable test equipment, and automotive dashboards. Its streamlined design ensures seamless incorporation into a wide variety of devices without compromising on performance.
Effortless Integration and Interface Compatibility
The module’s 40-pin LVDS interface simplifies integration with modern systems, while the Molex-compatible connectors ensure secure, reliable connections. These features enable smooth setup in industrial machinery displays, programmable logic controllers (PLCs),etc.
This ease of integration reduces development time, making the TM070JDHG30 a preferred choice for system developers and manufacturers alike.
A Reliable Display for Diverse Applications
The TM070JDHG30 is ideal for applications requiring static or semi-dynamic visuals, where image clarity and reliability are paramount. For example, in medical equipment, it excels in tools such as patient monitoring systems or diagnostic displays that demand precision without rapid screen updates. Similarly, in industrial automation, it serves as a dependable HMI (Human-Machine Interface) display, providing operators with detailed, easily readable data.
ANDESOURCE: Your Trusted Partner for High-Quality LCD Solutions
At ANDESOURCE, we specialize in delivering premium LCDs crafted for use in both industrial and medical applications. Backed by a robust supply network, we ensure fast and reliable order fulfillment. Our rigorous quality assurance processes guarantee that every LCD we provide upholds exceptional performance standards, even under demanding conditions.We guarantee the authenticity of every LCD panel we provide, ensuring reliable performance and peace of mind. Moreover, our experienced expert team is always available to offer professional advice tailored for your unique requirements.
Contact us today – we’re here to provide genuine, high-quality LCD panels at best price for all your needs!
