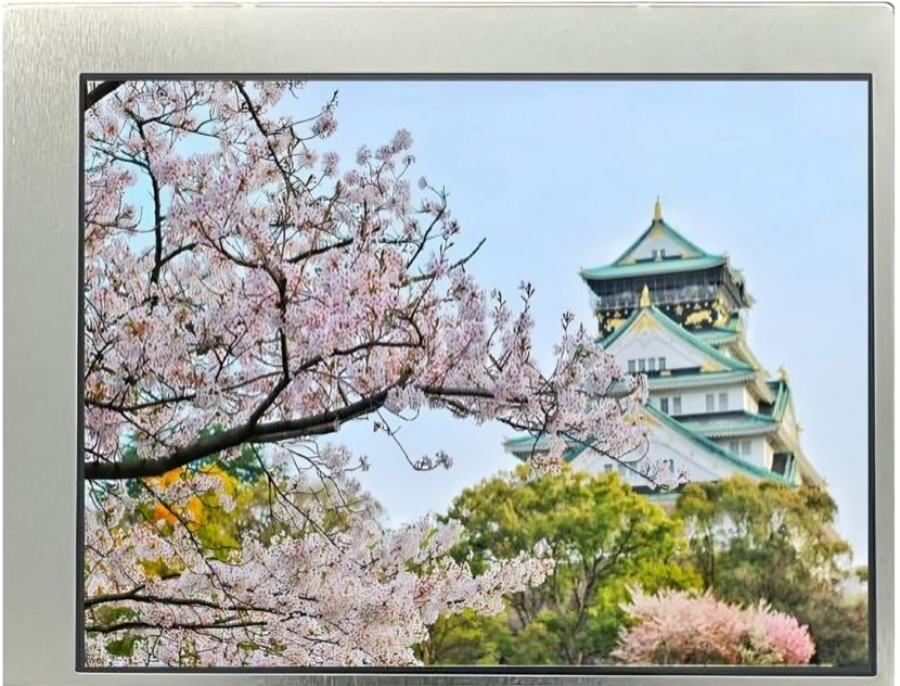

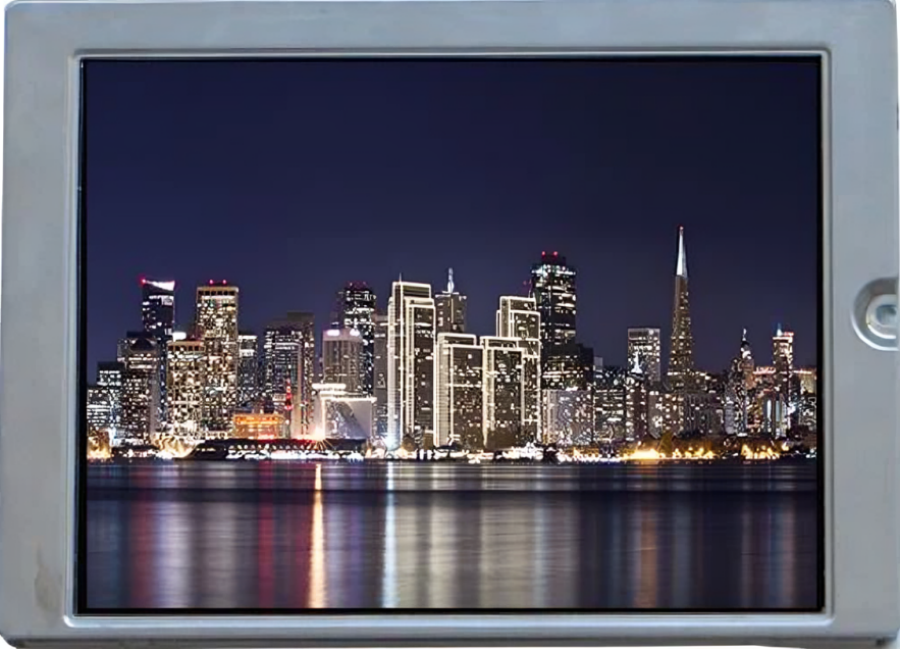

TCG057VGLAAANN-GN20 is an extra-thin, lightweight LCD module, designed for handheld devices in challenging industrial applications like marine instrumentation, automotive repair, lab testing and medical diagnostics.
Now ANDESOURCE will analyze in detail why it fits for those applications.
Key Specifications at A Glance
MODULE TYPE | TFT Digital |
DIAGONAL SIZE | 5.7" |
TYPE | Transmissive |
DISPLAY MODE | TN - Normally White |
BACKLIGHT | LED |
RESOLUTION | 640X480 |
BRIGHTNESS | 450 |
CONTRAST RATIO | 500:1 |
INTERFACE | LVDS |
VIEWING ANGLE | 80/8080/80 |
OPERATING TEMPERATURE (C) | -20 to 70 |
STORAGE TEMPERATURE (C) | -30 to 80 |
OUTER DIMENSION (MM) | 127.2 (W) x 100.4 (H) x 5.99D |
1. Automotive Maintenance
The TCG057VGLAANN-GN20 is an excellent choice for automotive maintenance due to its compact and robust design, making it ideal for handheld diagnostic tools. Automotive maintenance environments often experience significant temperature fluctuations, and the display’s operating temperature range of -20°C to +70°C ensures reliable performance under the varying temperature. Its slim 5.99mm profile makes it easy to integrate into portable devices, allowing technicians to carry it with ease.
With 450 nits of brightness and a 500:1 contrast ratio, the display provides clear visibility in typical lighting conditions found in most automotive maintenance settings, such as workshops or garages. While the brightness is ideal for indoor and shaded environments, it may not be sufficient for direct sunlight exposure or bright outdoor conditions.
The 80/80/80/80 viewing angle makes it easier for multiple technicians to view the display at once, ensuring efficient collaboration during diagnostics. Additionally, the PWM dimming control (ranging from 0.1% to 100%) gives users the flexibility to adjust brightness depending on ambient light, optimizing visibility in varying lighting conditions.
2. Laboratory Testing and Measurement
In laboratory testing, precision and clarity are crucial, and the TCG057VGLAANN-GN20 delivers high-contrast visuals with excellent sharpness for reading complex testing or measurement data. With its 500:1 contrast ratio and 450 nits brightness, it provides clear and detailed visuals in typical indoor laboratory settings, where lighting is generally controlled and consistent. The PWM dimming control allows for fine adjustments, ensuring the display can be optimized for various light levels, whether in darker spaces or bright workstations.
The ultra-thin design of the display makes it ideal for portable laboratory equipment, offering ease of use for field testing or handheld devices. Its LED backlight, more energy-efficient than older backlighting technologies, helps reduce power consumption, supporting extended use in portable devices during prolonged experiments or lab testing.
3. Marine Instrumentation
For marine instrumentation, the TCG057VGLAANN-GN20 is designed to withstand the challenging conditions of indoor marine environments, where temperature fluctuations are common. Its -20°C to +70°C operating temperature range ensures reliable performance in cabins, cockpits, or control panels on ships or boats.
While the 450 nits brightness is great for shaded or indoor environments, it may not be sufficient for direct sunlight exposure on open decks. In these conditions, additional shading or an anti-glare cover would enhance readability.
The 80/80/80/80 viewing angle ensures that the display remains readable from different positions, which is ideal when multiple operators are monitoring instrumentation. The PWM dimming control enables users to adjust the display's brightness according to the changing light conditions, whether inside a dimly lit cabin or on a cloudy day at sea.
4. Medical Diagnostics
In medical diagnostics, clear and accurate display of critical data is essential. The TCG057VGLAANN-GN20 provides a sharp, high-contrast display, with a 500:1 contrast ratio and 450 nits brightness, making it perfect for use in clinics, hospitals, or for portable medical diagnostics. In controlled indoor environments, the display ensures that vital diagnostic information is clearly visible, even in brightly lit rooms.
The ultra-thin profile of the display makes it an excellent choice for portable medical devices, allowing healthcare professionals to carry and operate diagnostic tools with ease. The PWM dimming control gives flexibility to adjust the brightness for different lighting conditions, whether in dim exam rooms or bright clinical settings.
Its LED backlight, more efficient than older backlighting technologies, helps optimize power consumption, enabling longer operation times in portable medical devices during extended examinations or patient assessments.
