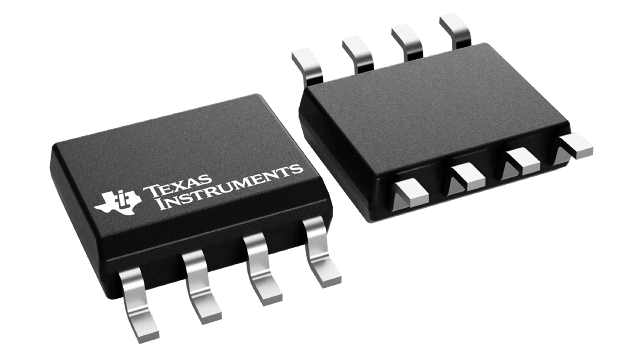

In the world of operational amplifiers (op-amps), the LM318M/NOPB from Texas Instruments (TI) stands out as a high-speed, precision component designed for applications requiring wide bandwidth and high slew rates. This blog will explore the LM318M/NOPB's key features, its applications, and introduce its domestic equivalent, the TP2581-SR, which can directly replace it in various high-performance scenarios.
Key Features of LM318M/NOPB
The LM318M/NOPB op-amp is engineered for high-speed applications, offering a tenfold increase in speed compared to general-purpose op-amps without sacrificing DC performance. Here are some of its notable characteristics:
High Slew Rate: The LM318M/NOPB boasts an impressive slew rate of 50 V/µs, making it ideal for applications requiring rapid changes in output voltage.
Wide Bandwidth: With a bandwidth of 15 MHz, this op-amp supports high-frequency operations, essential for applications like oscillators and active filters.
Internal Frequency Compensation: The internal unit-gain frequency compensation simplifies its use, eliminating the need for external components in many applications.
Customizable Performance: Unlike many internally compensated op-amps, the LM318M/NOPB allows for external frequency compensation to optimize performance. For inverting applications, feedforward compensation can boost the slew rate to over 150 V/µs, effectively doubling the bandwidth. Overcompensation can be used to enhance stability when maximum bandwidth isn't required.
Fast Settling Time: With the addition of a single capacitor, the settling time for a 0.1% error band can be reduced to under 1 µs, making the LM318M/NOPB suitable for high-speed data acquisition systems.
Applications of LM318M/NOPB
The LM318M/NOPB's high speed and rapid settling time make it extremely versatile in various high-performance applications, including:
A/D Converters: Its fast response and precision are critical for accurate analog-to-digital conversion.
Oscillators: The wide bandwidth and high slew rate enable stable and high-frequency oscillations.
Active Filters: Its performance ensures precise filtering in high-frequency applications.
Sample-and-Hold Circuits: The quick settling time is crucial for capturing and holding rapidly changing signals.
General-Purpose Amplifiers: Its versatility allows it to be used in a wide range of amplification tasks.
Introducing the Domestic Equivalent: TP2581-SR
For those seeking a domestic alternative to the LM318M/NOPB, the TP2581-SR presents itself as a suitable replacement. This Chinese-manufactured op-amp offers comparable performance and can be directly substituted in most applications where the LM318M/NOPB is used.
Key Features of TP2581-SR
High Slew Rate and Bandwidth: Like the LM318M/NOPB, the TP2581-SR provides a high slew rate and wide bandwidth, making it suitable for similar high-speed applications.
Internal and External Compensation Options: The TP2581-SR also features internal frequency compensation and allows for external adjustments to optimize performance for specific applications.
Fast Settling Time: It offers a quick settling time, ensuring it can handle fast and precise signal processing tasks effectively.
Applications and Performance
The TP2581-SR can be seamlessly integrated into various applications previously handled by the LM318M/NOPB, including:
High-Speed Data Acquisition: Its fast settling time and high slew rate make it ideal for use in A/D converters and sample-and-hold circuits.
Signal Processing: The wide bandwidth supports high-frequency signal processing in oscillators and active filters.
General Amplification: Its robust performance ensures reliable operation in a wide range of amplification tasks.
Transitioning to TP2581-SR
For engineers and designers considering the transition to the TP2581-SR from the LM318M/NOPB, the process is straightforward due to their similar specifications and performance characteristics. This domestic equivalent not only matches the performance but also offers potential cost savings and local availability advantages.
Conclusion
The LM318M/NOPB op-amp from Texas Instruments has established itself as a high-speed, precision component essential for numerous high-performance applications. However, the TP2581-SR presents a viable domestic alternative that can seamlessly replace the LM318M/NOPB in various scenarios, ensuring continued performance and reliability. We have listed three models below in stock for the users.
Whether you are designing data acquisition systems, oscillators, active filters, or general-purpose amplification circuits, both the LM318M/NOPB and its domestic counterpart TP2581-SR offer the high-speed, precision, and reliability needed for modern electronic applications.
