As the demand for reliable and cost-efficient LCD panels grows, businesses are seeking alternatives that provide both performance and affordability. ANDESOURCE introduces the ANDE150XG1-L01, a 15.0-inch LCD panel designed as an alternative to LQ150X1LW94 and G150XVN01.0. With up to 50% cost savings,reliable supply with long-term availability, customization services and technical support from the original factory,this model is the ideal choice for industries looking for a stable, high-performance display solution at a more competitive price.
Key Specifications at A Glance
ANDE LCD Model | Alternative LCD Model |
Size | 15.0" |
Active Area | 304.128 (H) x 228.096 (V) mm |
Resolution | XGA (1024(H) x 768(V)) |
Pixel Pitch | 0.297 (per one triad) x 0.297 |
Display Mode | VA, Normally Black |
Viewing Angle | 89/89/89/89 (Typ.) |
Brightness | 300 (center, Typ) nits |
Contrast Ratio | 1500 : 1 (Typ) |
Response Time | 35 msec (Typ, on/off) |
Input Voltage VDD | +3.3 Volt |
Power Consumption | 15 W(Typ) |
Weight | 950 g |
Dimensions (H x V x D) | 326.5 (H) x 253.5 (V) x 9.6(D) (Typ) mm |
Interface | one channel LVDS |
Surface Treatment | Hard-coating (3H), Anti-Glare treatment |
Supported Colors | 16.2M / 262K colors |
Temperature Range | Operating: -10 to +70 (Tgs) ℃ Storage: - 30 to +70 (Ta) ℃
|
RoHS Compliance | Yes |
LED Lifetime | 50,000 hrs |
What Makes ANDE150XG1-L01 Stand Out?
Enhanced Visual Performance
The ANDE150XG1-L01 utilizes VA , Normally Black technology, offering a high contrast ratio of 1500:1, which delivers deeper blacks and improved grayscale performance compared to TN panels. This ensures better visibility for industrial and commercial applications where contrast and readability are key factors.
With wide 89° viewing angles in all directions, this display ensures clear and legible content from multiple perspectives. This makes it particularly beneficial for applications where visibility from different angles is crucial, such as operator interfaces in industrial control panels, patient data displays in medical environments, self-service kiosks, and eye-level digital signage in retail.
Additionally, the 300-nit brightness ensures good visibility in moderate lighting conditions. While this brightness level is suitable for indoor environments, additional brightness enhancement may be required for direct sunlight exposure.
The panel supports 16.2M / 262K colors, providing accurate color reproduction for many industrial and commercial applications.
Reliable and Durable Design
Built for long-term performance, the ANDE150XG1-L01 features a 50,000-hour LED lifetime, reducing the need for frequent replacements. The hard-coating (3H) and anti-glare treatment help minimize reflections and surface damage, improving durability and readability in bright environments.
The panel's operating temperature range of -10°C to +70°C ensures reliability in many industrial settings, transportation, and automation systems. For extreme environments requiring operation below -10°C or above 70°C, additional display enhancements may be needed.
Energy Efficiency & Compact Form Factor
With a low power consumption of 15W (typical), this panel balances performance with energy efficiency, making it a cost-effective choice for various applications.
Its compact design (9.6mm thickness, 950g weight) allows for seamless drop-in replacement in existing enclosures, ensuring easy integration with minimal or no design modifications.
3. Where ANDE150XG1-L01 Excels

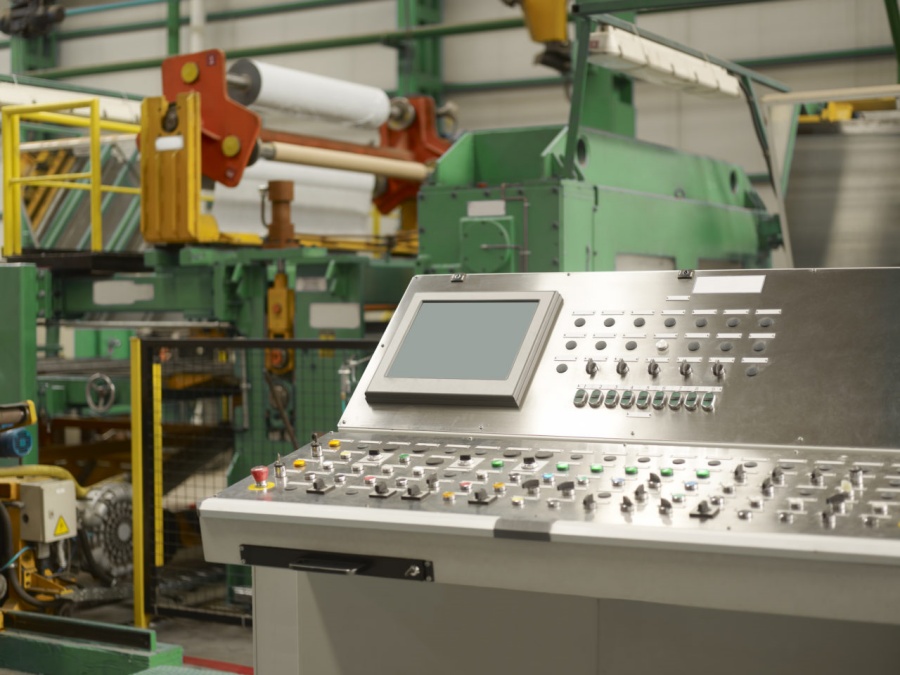

Industrial Control & Automation
For manufacturing control panels and industrial automation systems, the ANDE150XG1-L01 provides the durability and reliability needed. Its wide viewing angles, anti-glare surface, and extended temperature range ensure stable operation in industrial environments.

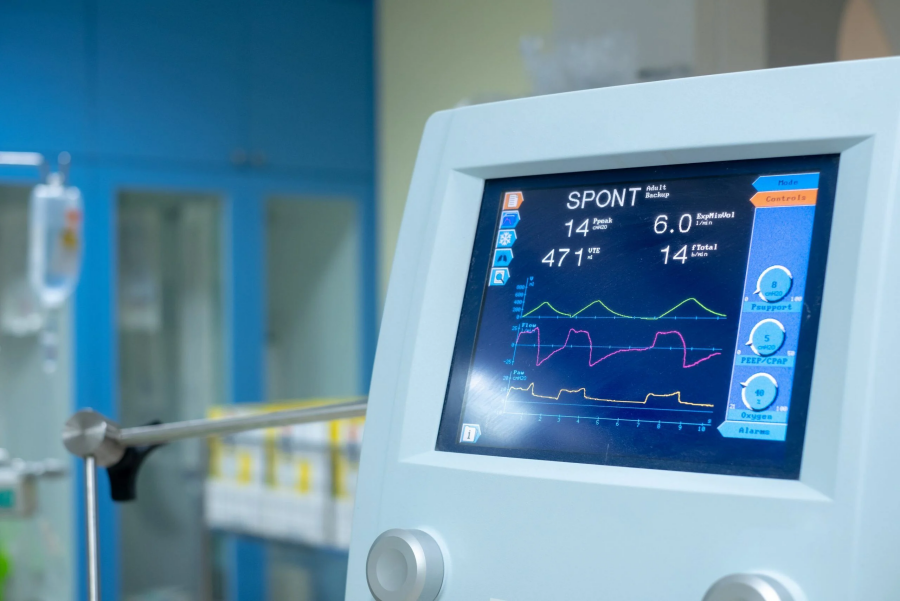

Medical Equipment Displays
In medical diagnostic and monitoring applications, a high contrast ratio is crucial for clear image and data visualization. The ANDE150XG1-L01’s VA technology enhances contrast and grayscale performance, making it a solid choice for medical displays that do not require ultra-high color accuracy.
Retail & Commercial Displays (POS, Kiosks, ATMs, Digital Signage)
For point-of-sale (POS) systems, kiosks, ATMs, and retail digital signage, this panel provides an optimal balance of durability, brightness, and low power consumption. The anti-glare surface ensures better readability in bright indoor environments, making it an excellent choice for commercial applications.
Why Choose ANDESOURCE for LCD Alternative Solutions?
Finding the right LCD alternative can be challenging, especially when dealing with compatibility issues, high costs, supply shortages, and customization needs. ANDESOURCE provides reliable, cost-effective, technically supported, customizable solutions for businesses looking for LCD alternatives. Here’s why we stand out as the preferred partner:
Up to 50% Cost Savings
Our LCD alternative solutions offer up to 50% cost savings compared to the models from premium brands, helping businesses reduce expenses without compromising performance.
Comprehensive Technical Support
We provide direct support from the original factory, including adjusting parameters, pin configuration, and original code debugging.
Reliable, Long-Term Supply
With a stable and consistent supply chain, we help businesses avoid disruptions caused by product discontinuations or shortages.
Flexible Customization Options
We offer tailored solutions, including touch functionality, enhanced brightness, and driver board integration, to meet specific application needs.
Fast Delivery
Our efficient logistics ensure fast delivery, keeping your project on schedule.
Meticulous Quality Assurance
Every panel undergoes rigorous testing to meet industry standards, ensuring consistent performance and durability.
Need a reliable LCD alternative? Contact ANDESOURCE today!
