Category
PMIC - Power Distribution Switches, Load Drivers
Manufacturer
STMicroelectronics
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

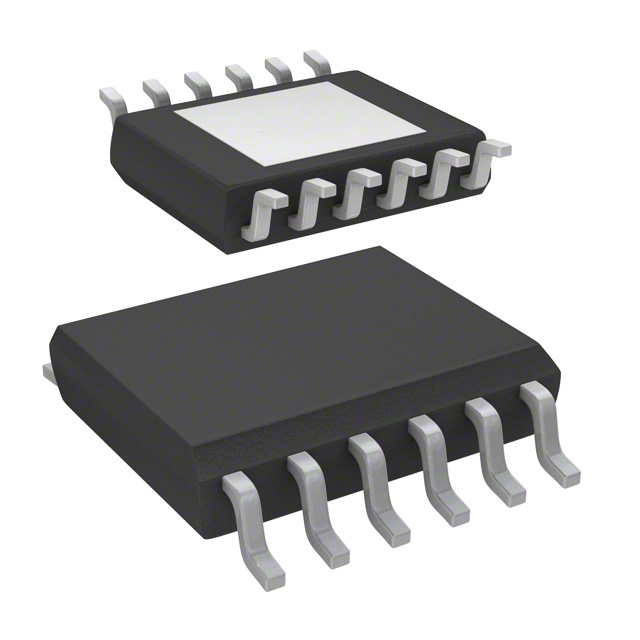

| Part Number: | VND5050AJTR-E |
| Description: | IC DVR HISIDE 2CH POWERSSO12 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Series | VIPower™ |
| Input Type | Non-Inverting |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Supplier Device Package | PowerSSO-12™ |
| Package / Case | 12-LSOP (0.154, 3.90mm Width) Exposed Pad |
| Switch Type | General Purpose |
| Features | Auto Restart |
| Current - Output (Max) | 12A |
| Output Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Voltage - Load | 4.5 V ~ 36 V |
| Rds On (Typ) | 50 mOhm (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Other Names | 497-11474-2 "######"VND5050AJTR-E-ND "######"VND5050AJTRE |
| Meta Part Number | 497-11474-2-ND |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Base Part Number | VND5050 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Number of Outputs | 2 |
| Interface | On/Off |
Data sheet: Work in prgress, stay tuned!
