Category
Diodes - Rectifiers - Single
Manufacturer
Electro-Films (EFI) / Vishay
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

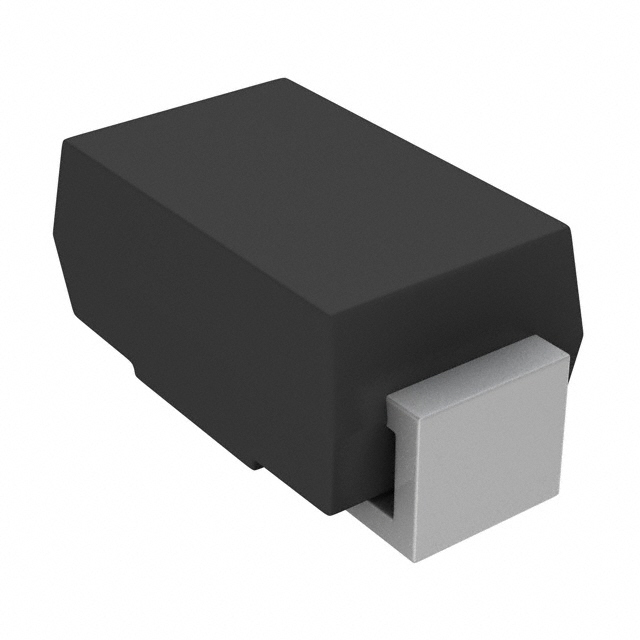

| Part Number: | US1K-E3/5AT |
| Description: | DIODE GEN PURP 800V 1A DO214AC |
| Lead Free Status / RoHS Status: | |
| Supplier Device Package | DO-214AC (SMA) |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Package / Case | DO-214AC, SMA |
| Detailed Description | Diode Standard 800V 1A Surface Mount DO-214AC (SMA) |
| Current - Reverse Leakage @ Vr | 10µA @ 800V |
| Meta Part Number | US1K-E3/5ATGITR-ND |
| Packaging | Tape & Reel (TR) |
| Series | - |
| Diode Type | Standard |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Speed | Fast Recovery = 200mA (Io) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Reverse Recovery Time (trr) | 75ns |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Base Part Number | US1K |
| Voltage - DC Reverse (Vr) (Max) | 800V |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 1A |
| Other Names | US1K-E3/5AT-ND ",US1K-E3/5ATGITR |
Data sheet: Work in prgress, stay tuned!
