Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Micrel / Microchip Technology
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

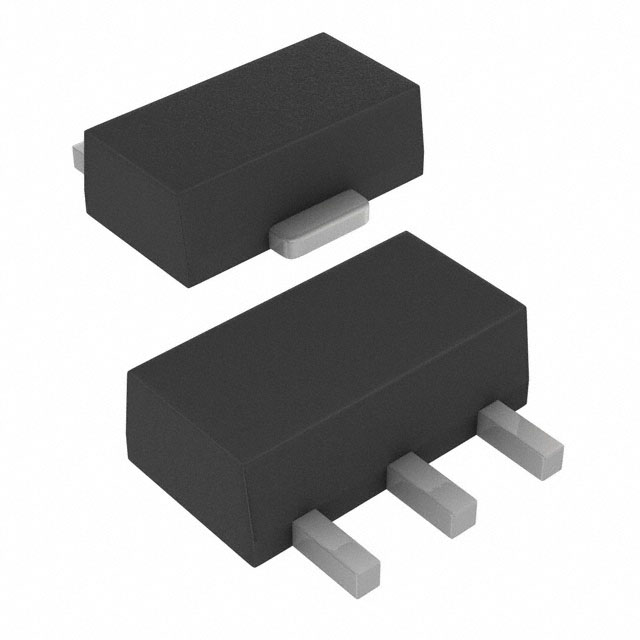

| Part Number: | TP2510N8-G |
| Description: | MOSFET P-CH 100V 0.48A SOT89-3 |
| Lead Free Status / RoHS Status: | |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-243AA (SOT-89) |
| Power Dissipation (Max) | 1.6W (Ta) |
| Vgs (Max) | ±20V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 480mA (Tj) |
| Vgs(th) (Max) @ Id | 2.4V @ 1mA |
| Meta Part Number | TP2510N8-GTR-ND |
| Rds On (Max) @ Id, Vgs | 3.5 Ohm @ 750mA, 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 125pF @ 25V |
| Other Names | TP2510N8-G-ND TP2510N8-GTR |
| FET Feature | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Drain to Source Voltage (Vdss) | 100V |
| Mounting Type | Surface Mount |
| Series | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Packaging | Tape & Reel (TR) |
| Detailed Description | P-Channel 100V 480mA (Tj) 1.6W (Ta) Surface Mount TO-243AA (SOT-89) |
| Manufacturer Standard Lead Time | 16 Weeks |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Package / Case | TO-243AA |
| FET Type | P-Channel |
Data sheet: Work in prgress, stay tuned!
