Category
PMIC - Voltage Reference
Manufacturer
Nexperia
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

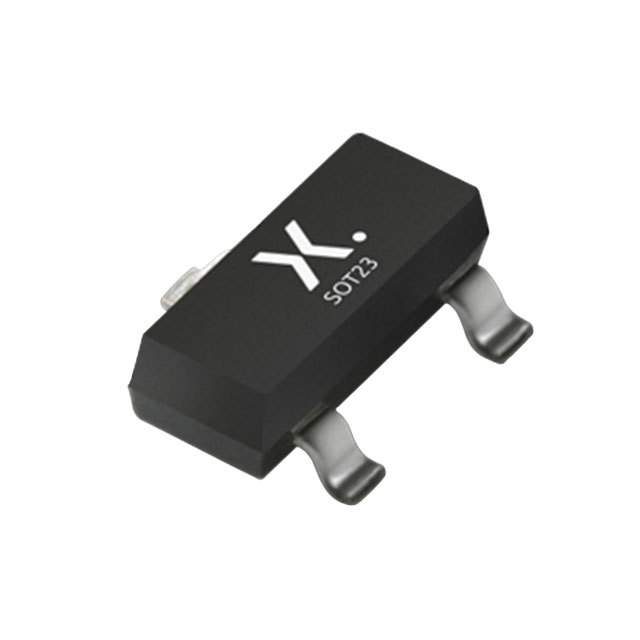

| Part Number: | TL431BIDBZR,215 |
| Description: | IC VREF SHUNT ADJ SOT23-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Noise - 10Hz to 10kHz | - |
| Current - Supply | - |
| Tolerance | ±0.5% |
| Meta Part Number | 1727-4257-2-ND |
| Voltage - Output (Max) | 36V |
| Output Type | Adjustable |
| Detailed Description | Shunt Voltage Reference IC 36V ±0.5% 100mA TO-236AB (SOT23) |
| Series | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Base Part Number | TL431 |
| Other Names | 1727-4257-2 "######"568-4888-2 "######"568-4888-2-ND "######"935288024215 "######"TL431BIDBZR215 |
| Mounting Type | Surface Mount |
| Current - Cathode | 600µA |
| Voltage - Input | - |
| Current - Output | 100mA |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Noise - 0.1Hz to 10Hz | - |
| Temperature Coefficient | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Reference Type | Shunt |
| Packaging | Tape & Reel (TR) |
| Supplier Device Package | TO-236AB (SOT23) |
| Voltage - Output (Min/Fixed) | 2.495V |
Data sheet: Work in prgress, stay tuned!
