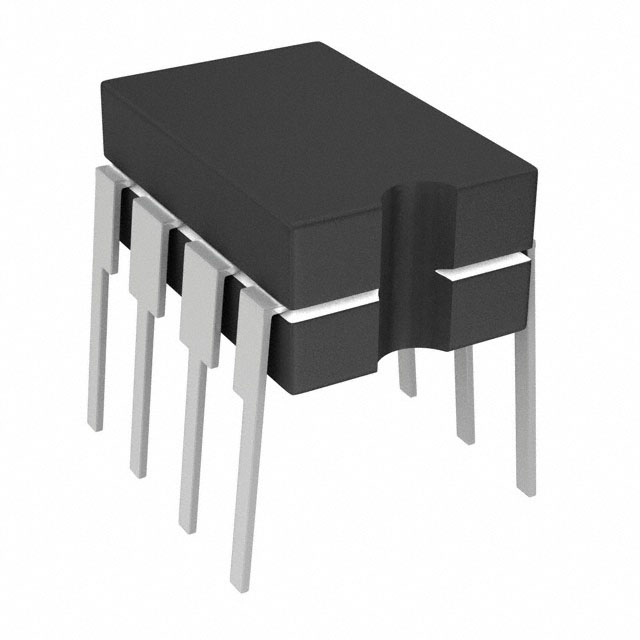

| Part Number: | TC4420IJA |
| Description: | IC MOSFET DRIVER 6A HS 8CDIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Base Part Number | TC4420 |
| Rise / Fall Time (Typ) | 25ns, 25ns |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Mounting Type | Through Hole |
| Driven Configuration | Low-Side |
| Supplier Device Package | 8-CERDIP |
| Package / Case | 8-CDIP (0.300, 7.62mm) |
| Manufacturer Standard Lead Time | 10 Weeks |
| Input Type | Non-Inverting |
| Voltage - Supply | 4.5 V ~ 18 V |
| Channel Type | Single |
| Current - Peak Output (Source, Sink) | 6A, 6A |
| Meta Part Number | TC4420IJA-ND |
| Packaging | Tube |
| Detailed Description | Low-Side Gate Driver IC Non-Inverting 8-CERDIP |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | -25°C ~ 150°C (TJ) |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Series | - |
