Category
Embedded - Microcontrollers
Manufacturer
Cypress Semiconductor (Infineon Technologies)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

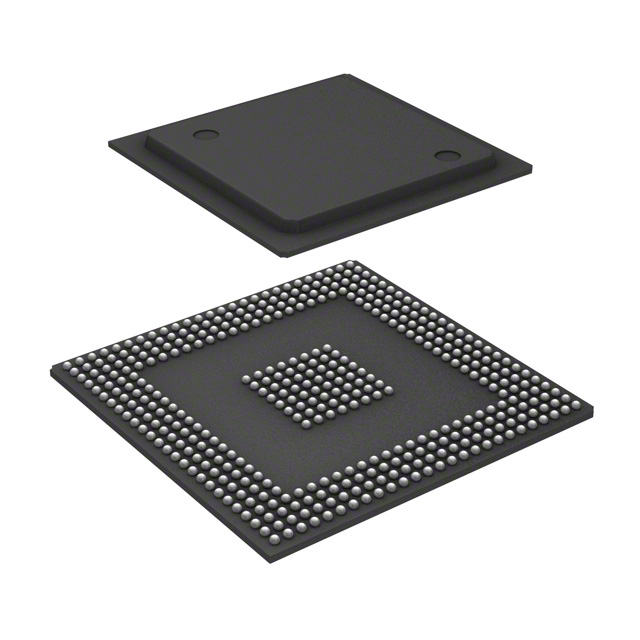

| Part Number: | TC1796256F150EBCKDUMA1 |
| Description: | IC MCU 32BIT 2MB FLASH 416BGA |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Program Memory Type | FLASH |
| Supplier Device Package | PG-BGA-416 |
| Base Part Number | SA*TC1796 |
| Detailed Description | TriCore™ TC17xx Microcontroller IC 32-Bit 150MHz 2MB (2M x 8) FLASH PG-BGA-416 |
| Core Size | 32-Bit |
| Number of I/O | 123 |
| EEPROM Size | - |
| Series | TC17xx |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Packaging | Tape & Reel (TR) |
| Core Processor | TriCore™ |
| Oscillator Type | External |
| Connectivity | ASC, CANbus, EBI/EMI, MLI, MSC, SSC |
| Package / Case | 416-BGA |
| Meta Part Number | TC1796256F150EBCKDUMA1TR-ND |
| Program Memory Size | 2MB (2M x 8) |
| Peripherals | DMA, POR, WDT |
| Data Converters | A/D 44x12b |
| Other Names | SAK-TC1796-256F150E BC "######"SAK-TC1796-256F150E BC-ND "######"SAKTC1796256F150EBC "######"SAKTC1796256F150EBCT "######"SP000097527 "######"SP000097528 "######"TC1796256F150EBCKDUMA1TR |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.42 V ~ 1.58 V |
| Speed | 150MHz |
Data sheet: Work in prgress, stay tuned!
