Category
Embedded - Microcontrollers
Manufacturer
STMicroelectronics
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

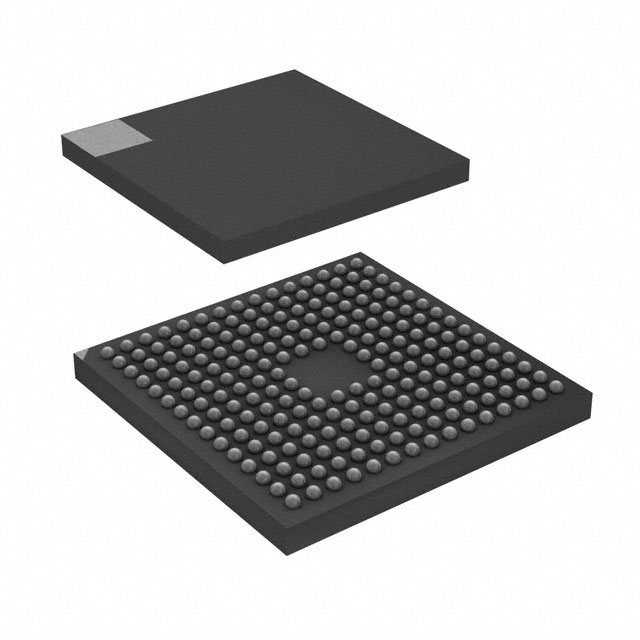

| Part Number: | STM32F746NGH6 |
| Description: | IC MCU 32BIT 1MB FLASH 216TFBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Core Processor | ARM® Cortex®-M7 |
| Speed | 216MHz |
| Data Converters | A/D 24x12b, D/A 2x12b |
| Core Size | 32-Bit |
| Number of I/O | 168 |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Series | STM32F7 |
| Packaging | Tray |
| Meta Part Number | 497-15818-ND |
| Detailed Description | ARM® Cortex®-M7 STM32F7 Microcontroller IC 32-Bit 216MHz 1MB (1M x 8) FLASH 216-TFBGA (13x13) |
| Supplier Device Package | 216-TFBGA (13x13) |
| EEPROM Size | - |
| Manufacturer Standard Lead Time | 14 Weeks |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Program Memory Size | 1MB (1M x 8) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7 V ~ 3.6 V |
| Package / Case | 216-TFBGA |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| Other Names | 497-15818 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
Data sheet: Work in prgress, stay tuned!
