Category
Embedded - Microcontrollers
Manufacturer
STMicroelectronics
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

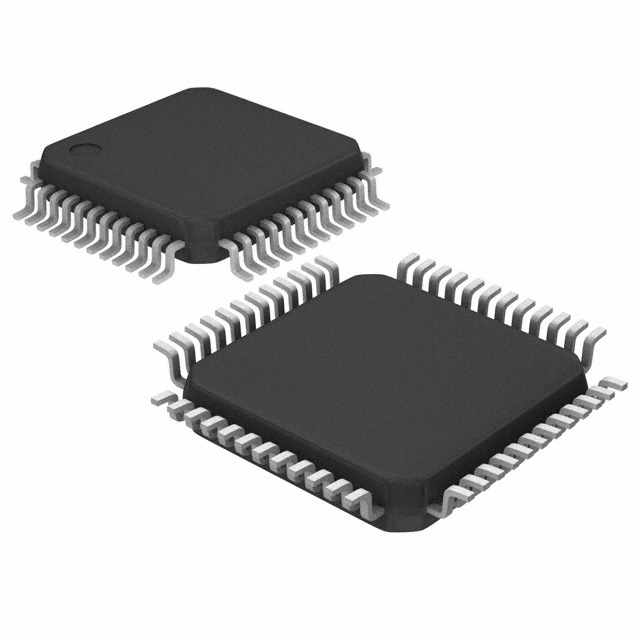

| Part Number: | STM32F103C8T6 |
| Description: | IC MCU 32BIT 64KB FLASH 48LQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Program Memory Size | 64KB (64K x 8) |
| Meta Part Number | 497-6063-ND |
| Program Memory Type | FLASH |
| Series | STM32F1 |
| Number of I/O | 37 |
| Base Part Number | STM32F103 |
| Detailed Description | ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit 72MHz 64KB (64K x 8) FLASH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 3.6 V |
| RAM Size | 20K x 8 |
| EEPROM Size | - |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Speed | 72MHz |
| Package / Case | 48-LQFP |
| Packaging | Tray |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Data Converters | A/D 10x12b |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Manufacturer Standard Lead Time | 10 Weeks |
| Other Names | 497-6063 |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
Data sheet:
STM32F103C8T6.pdf
