Category
PMIC - Voltage Regulators - DC DC Switching Regulators
Manufacturer
STMicroelectronics
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

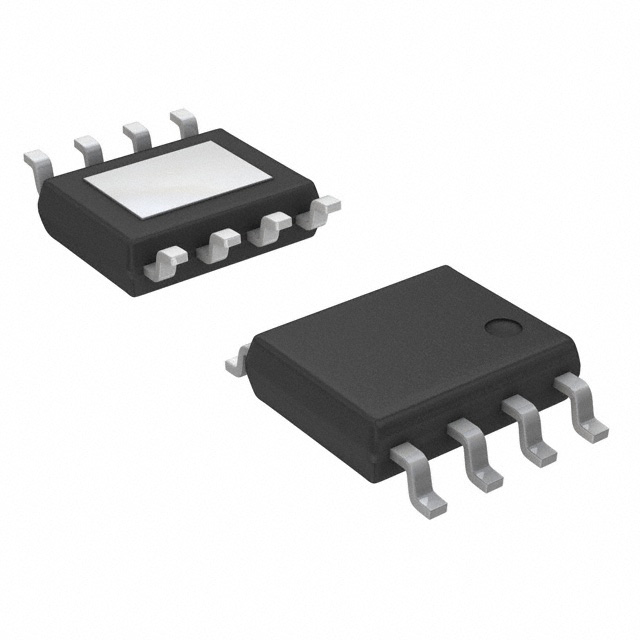

| Part Number: | ST1S14PHR |
| Description: | IC REG BUCK ADJ 3A 8HSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Meta Part Number | 497-10816-2-ND |
| Supplier Device Package | 8-HSOP |
| Frequency - Switching | 850kHz |
| Detailed Description | Buck Switching Regulator IC Positive Adjustable 1.22V 1 Output 3A 8-SOIC (0.154, 3.90mm Width) Exposed Pad |
| Synchronous Rectifier | No |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Function | Step-Down |
| Packaging | Tape & Reel (TR) |
| Output Type | Adjustable |
| Topology | Buck |
| Number of Outputs | 1 |
| Base Part Number | ST1S14 |
| Manufacturer Standard Lead Time | 38 Weeks |
| Voltage - Input (Max) | 48V |
| Voltage - Output (Max) | 43.2V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Voltage - Output (Min/Fixed) | 1.22V |
| Mounting Type | Surface Mount |
| Voltage - Input (Min) | 5.5V |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) Exposed Pad |
| Output Configuration | Positive |
| Series | - |
| Other Names | 497-10816-2 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Output | 3A |
Data sheet: Work in prgress, stay tuned!
