Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Electro-Films (EFI) / Vishay
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

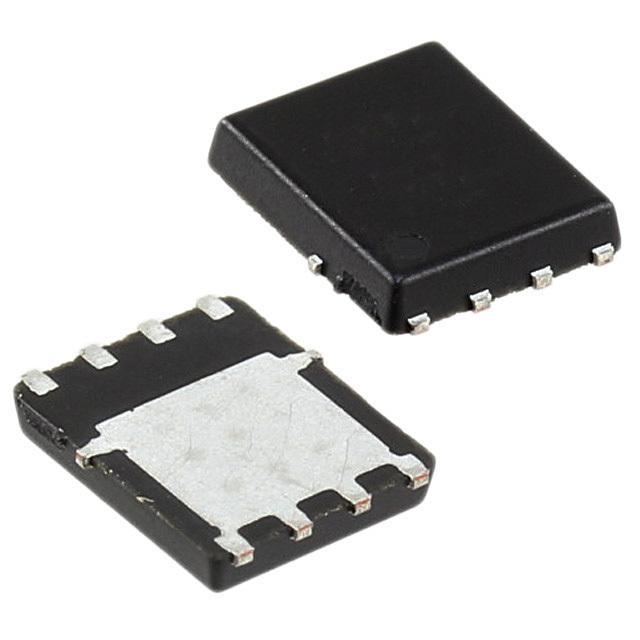

| Part Number: | SI7489DP-T1-E3 |
| Description: | MOSFET P-CH 100V 28A PPAK SO-8 |
| Lead Free Status / RoHS Status: | |
| Package / Case | PowerPAK® SO-8 |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| FET Type | P-Channel |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 5.2W (Ta), 83W (Tc) |
| Packaging | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Current - Continuous Drain (Id) @ 25°C | 28A (Tc) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Supplier Device Package | PowerPAK® SO-8 |
| Input Capacitance (Ciss) (Max) @ Vds | 4600pF @ 50V |
| Other Names | SI7489DP-T1-E3TR SI7489DPT1E3 |
| Vgs (Max) | ±20V |
| Gate Charge (Qg) (Max) @ Vgs | 160nC @ 10V |
| Detailed Description | P-Channel 100V 28A (Tc) 5.2W (Ta), 83W (Tc) Surface Mount PowerPAK® SO-8 |
| Meta Part Number | SI7489DP-T1-E3TR-ND |
| Drain to Source Voltage (Vdss) | 100V |
| Series | TrenchFET® |
| Manufacturer Standard Lead Time | 33 Weeks |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 41 mOhm @ 7.8A, 10V |
Data sheet: Work in prgress, stay tuned!
