Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Electro-Films (EFI) / Vishay
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

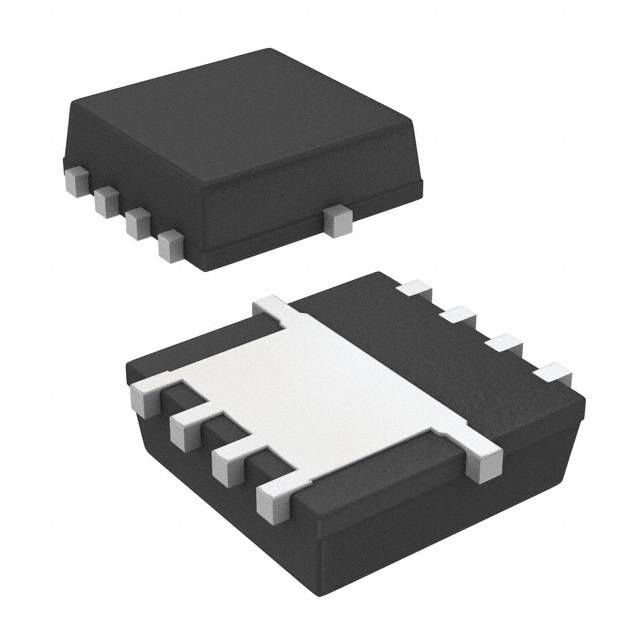

| Part Number: | SI7116DN-T1-E3 |
| Description: | MOSFET N-CH 40V 10.5A 1212-8 |
| Lead Free Status / RoHS Status: | |
| Rds On (Max) @ Id, Vgs | 7.8 mOhm @ 16.4A, 10V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Manufacturer Standard Lead Time | 27 Weeks |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 10.5A (Ta) |
| Meta Part Number | SI7116DN-T1-E3TR-ND |
| Drain to Source Voltage (Vdss) | 40V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Detailed Description | N-Channel 40V 10.5A (Ta) 1.5W (Ta) Surface Mount PowerPAK® 1212-8 |
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® 1212-8 |
| FET Feature | - |
| Vgs (Max) | ±20V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Series | TrenchFET® |
| Power Dissipation (Max) | 1.5W (Ta) |
| Other Names | SI7116DN-T1-E3TR SI7116DNT1E3 |
| Technology | MOSFET (Metal Oxide) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 4.5V |
| Supplier Device Package | PowerPAK® 1212-8 |
Data sheet: Work in prgress, stay tuned!
