Category
Diodes - Rectifiers - Single
Manufacturer
Micro Commercial Components (MCC)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

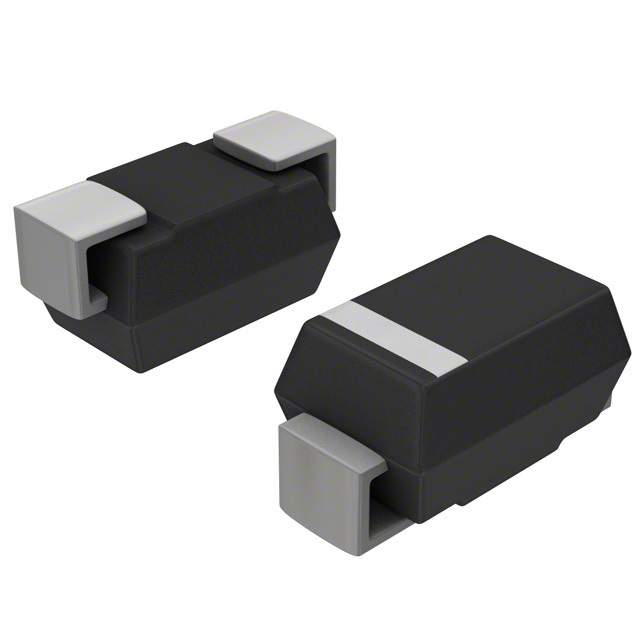

| Part Number: | S2M-LTP |
| Description: | DIODE GEN PURP 1KV 2A DO214AA |
| Lead Free Status / RoHS Status: | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Speed | Fast Recovery = 200mA (Io) |
| Meta Part Number | S2M-LTPMSTR-ND |
| Voltage - DC Reverse (Vr) (Max) | 1000V |
| Detailed Description | Diode Standard 1000V 2A Surface Mount DO-214AA (SMB) |
| Other Names | S2M-LTPMSTR |
| Supplier Device Package | DO-214AA (SMB) |
| Package / Case | DO-214AA, SMB |
| Packaging | Tape & Reel (TR) |
| Current - Average Rectified (Io) | 2A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Series | - |
| Voltage - Forward (Vf) (Max) @ If | 1.15V @ 2A |
| Current - Reverse Leakage @ Vr | 5µA @ 1000V |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Manufacturer Standard Lead Time | 14 Weeks |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Data sheet: Work in prgress, stay tuned!
