Category
Transistors - FETs, MOSFETs - Single
Manufacturer
LAPIS Technology
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

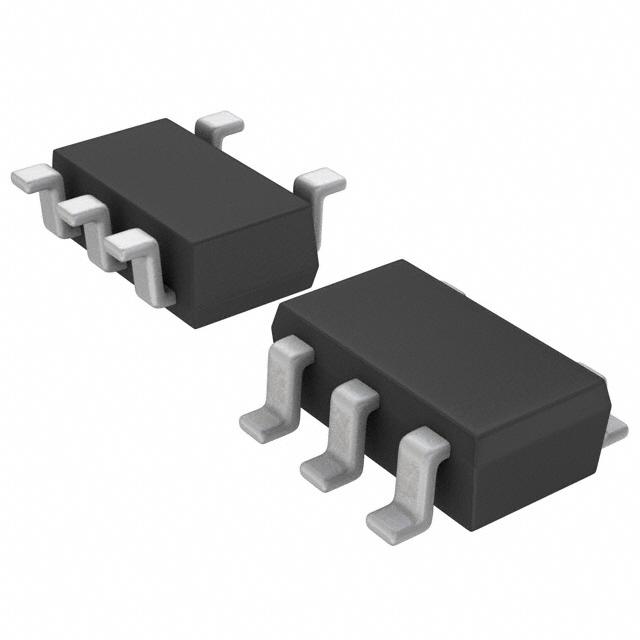

| Part Number: | QS5U27TR |
| Description: | MOSFET P-CH 20V 1.5A TSMT5 |
| Lead Free Status / RoHS Status: | |
| Input Capacitance (Ciss) (Max) @ Vds | 325pF @ 10V |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Drain to Source Voltage (Vdss) | 20V |
| Supplier Device Package | TSMT5 |
| FET Type | P-Channel |
| Power Dissipation (Max) | 1.25W (Ta) |
| Current - Continuous Drain (Id) @ 25°C | 1.5A (Ta) |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Rds On (Max) @ Id, Vgs | 200 mOhm @ 1.5A, 4.5V |
| Technology | MOSFET (Metal Oxide) |
| Detailed Description | P-Channel 20V 1.5A (Ta) 1.25W (Ta) Surface Mount TSMT5 |
| Vgs (Max) | ±12V |
| Operating Temperature | 150°C (TJ) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Other Names | QS5U27DKR |
| Gate Charge (Qg) (Max) @ Vgs | 4.2nC @ 4.5V |
| Meta Part Number | QS5U27DKR-ND |
| Mounting Type | Surface Mount |
| FET Feature | Schottky Diode (Isolated) |
| Packaging | Digi-Reel® |
| Series | - |
Data sheet: Work in prgress, stay tuned!
