Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Nexperia
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

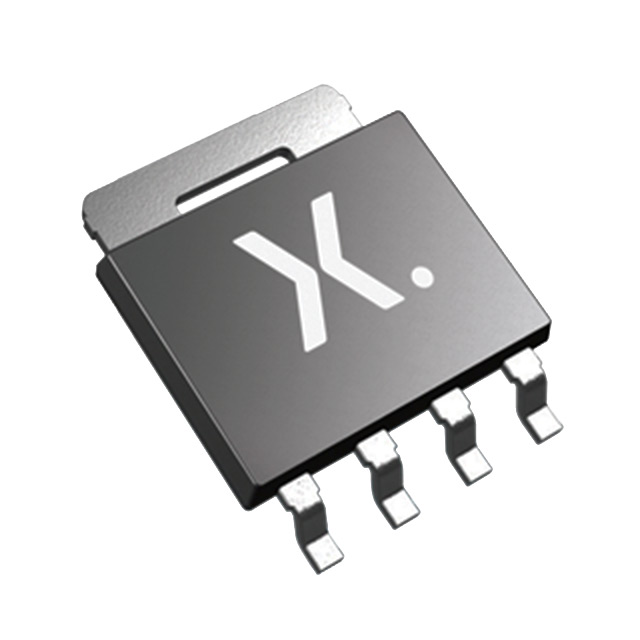

| Part Number: | PSMN4R0-40YS,115 |
| Description: | MOSFET N-CH 40V 100A LFPAK |
| Lead Free Status / RoHS Status: | |
| Supplier Device Package | LFPAK56, Power-SO8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Meta Part Number | 1727-4273-2-ND |
| Package / Case | SC-100, SOT-669, 4-LFPAK |
| Series | - |
| Drain to Source Voltage (Vdss) | 40V |
| Other Names | 1727-4273-2 568-4905-2 568-4905-2-ND 934063937115 PSMN4R040YS115 |
| Power Dissipation (Max) | 106W (Tc) |
| Vgs (Max) | ±20V |
| Rds On (Max) @ Id, Vgs | 4.2 mOhm @ 15A, 10V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Technology | MOSFET (Metal Oxide) |
| Input Capacitance (Ciss) (Max) @ Vds | 2410pF @ 20V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| FET Feature | - |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) (Max) @ Vgs | 38nC @ 10V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | N-Channel 40V 100A (Tc) 106W (Tc) Surface Mount LFPAK56, Power-SO8 |
| FET Type | N-Channel |
Data sheet: Work in prgress, stay tuned!
