Category
Embedded - Microcontrollers
Manufacturer
Micrel / Microchip Technology
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

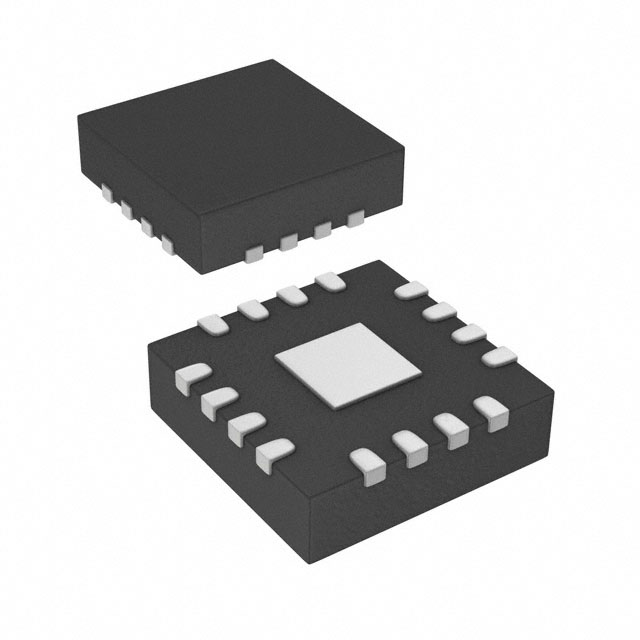

| Part Number: | PIC16LF1503-I/MG |
| Description: | IC MCU 8BIT 3.5KB FLASH 16QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Manufacturer Standard Lead Time | 14 Weeks |
| Package / Case | 16-VFQFN Exposed Pad |
| Meta Part Number | PIC16LF1503-I/MG-ND |
| Base Part Number | PIC16LF1503 |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
| Number of I/O | 11 |
| Core Size | 8-Bit |
| Supplier Device Package | 16-QFN-EP (3x3) |
| Program Memory Size | 3.5KB (2K x 14) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Core Processor | PIC |
| RAM Size | 128 x 8 |
| Oscillator Type | Internal |
| Detailed Description | PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 16-QFN-EP (3x3) |
| Data Converters | A/D 8x10b |
| Packaging | Tube |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Speed | 20MHz |
| EEPROM Size | - |
| Series | PIC® 16F |
| Program Memory Type | FLASH |
| Connectivity | I²C, SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Other Names | PIC16LF1503IMG |
Data sheet: Work in prgress, stay tuned!
