Category
Embedded - Microcontrollers
Manufacturer
Micrel / Microchip Technology
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

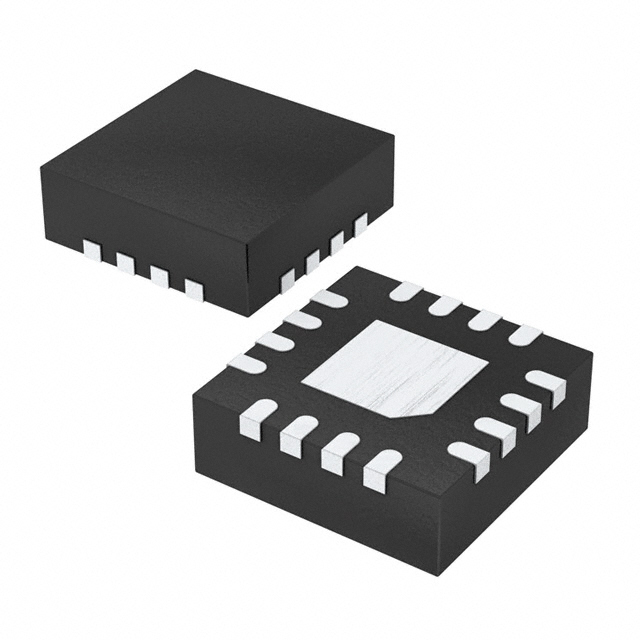

| Part Number: | PIC16HV616-I/ML |
| Description: | IC MCU 8BIT 3.5KB FLASH 16QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Core Size | 8-Bit |
| Package / Case | 16-VQFN Exposed Pad |
| Series | PIC® 16F |
| Program Memory Type | FLASH |
| Program Memory Size | 3.5KB (2K x 14) |
| Meta Part Number | PIC16HV616-I/ML-ND |
| Detailed Description | PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 16-QFN (4x4) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| EEPROM Size | - |
| Base Part Number | PIC16HV616 |
| Number of I/O | 11 |
| Oscillator Type | Internal |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Connectivity | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Packaging | Tube |
| RAM Size | 128 x 8 |
| Core Processor | PIC |
| Speed | 20MHz |
| Manufacturer Standard Lead Time | 14 Weeks |
| Supplier Device Package | 16-QFN (4x4) |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 5 V |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Data Converters | A/D 8x10b |
Data sheet: Work in prgress, stay tuned!
