Category
Embedded - Microcontrollers
Manufacturer
Micrel / Microchip Technology
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

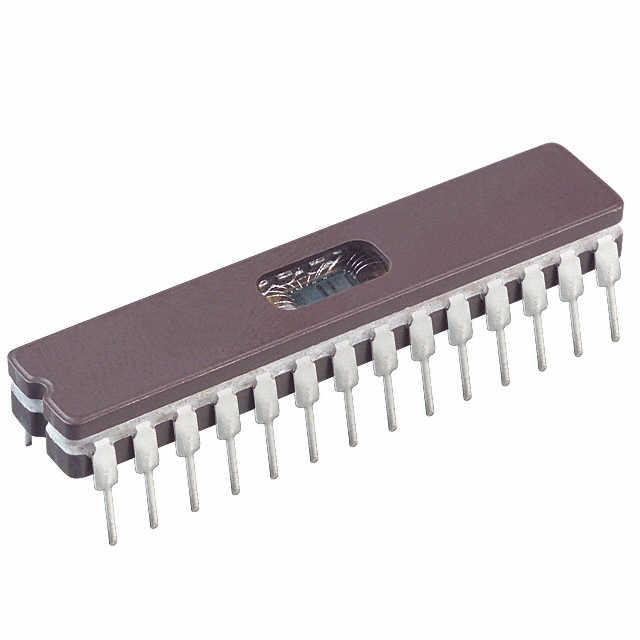

| Part Number: | PIC16C745/JW |
| Description: | IC MCU 8BIT 14KB EPROM 28CDIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | External |
| Program Memory Size | 14KB (8K x 14) |
| Package / Case | 28-CDIP (0.300, 7.62mm) Window |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Packaging | Tube |
| EEPROM Size | - |
| Supplier Device Package | 28-CerDip |
| Core Processor | PIC |
| Data Converters | A/D 5x8b |
| Series | PIC® 16C |
| Core Size | 8-Bit |
| Program Memory Type | EPROM, UV |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Meta Part Number | PIC16C745/JW-ND |
| Number of I/O | 22 |
| RAM Size | 256 x 8 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Part Number | PIC16C745 |
| Detailed Description | PIC PIC® 16C Microcontroller IC 8-Bit 24MHz 14KB (8K x 14) EPROM, UV 28-CerDip |
| Connectivity | SCI, UART/USART, USB |
| Voltage - Supply (Vcc/Vdd) | 4.35 V ~ 5.25 V |
| Speed | 24MHz |
Data sheet: Work in prgress, stay tuned!
