Category
Interface - I/O Expanders
Manufacturer
Freescale / NXP Semiconductors
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

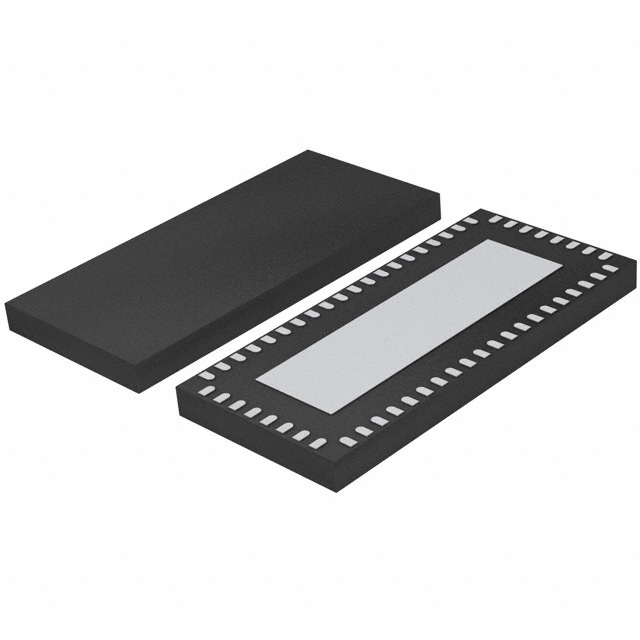

| Part Number: | PCA9506BS,118 |
| Description: | IC I/O EXPANDER I2C 40B 56HVQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Other Names | 568-3636-2 "######"935281575118 "######"PCA9506BS-T "######"PCA9506BS118 |
| Package / Case | 56-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interrupt Output | Yes |
| Output Type | Push-Pull |
| Current - Output Source/Sink | 10mA, 25mA |
| Packaging | Tape & Reel (TR) |
| Series | - |
| Features | POR |
| Number of I/O | 40 |
| Interface | I²C |
| Base Part Number | PCA9506 |
| Detailed Description | I/O Expander 40 I²C 400kHz 56-HVQFN (8x8) |
| Meta Part Number | 568-3636-2-ND |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Operating Temperature | -40°C ~ 85°C |
| Manufacturer Standard Lead Time | 7 Weeks |
| Clock Frequency | 400kHz |
| Supplier Device Package | 56-HVQFN (8x8) |
| Voltage - Supply | 2.3 V ~ 5.5 V |
Data sheet: Work in prgress, stay tuned!
