Category
Transistors - FETs, MOSFETs - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

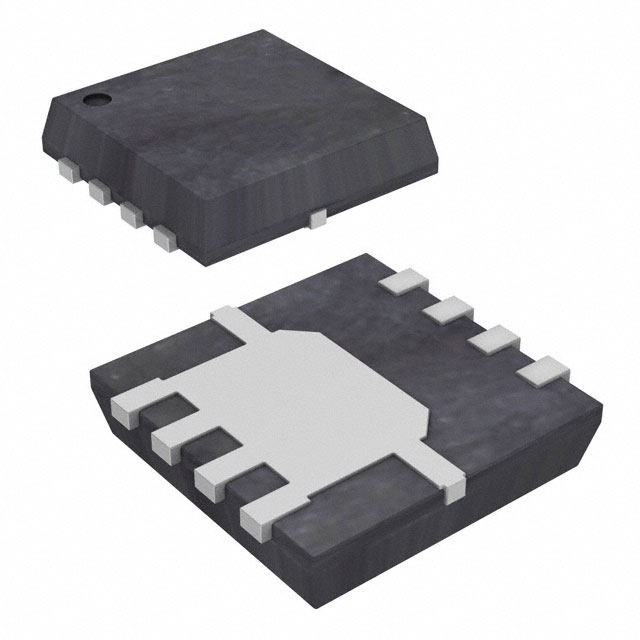

| Part Number: | NVTFS5116PLTAG |
| Description: | MOSFET P-CH 60V 14A 8WDFN |
| Lead Free Status / RoHS Status: | |
| Supplier Device Package | 8-WDFN (3.3x3.3) |
| Rds On (Max) @ Id, Vgs | 52 mOhm @ 7A, 10V |
| Mounting Type | Surface Mount |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| FET Feature | - |
| Meta Part Number | NVTFS5116PLTAGOSTR-ND |
| Power Dissipation (Max) | 3.2W (Ta), 21W (Tc) |
| FET Type | P-Channel |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Detailed Description | P-Channel 60V 6A (Ta) 3.2W (Ta), 21W (Tc) Surface Mount 8-WDFN (3.3x3.3) |
| Input Capacitance (Ciss) (Max) @ Vds | 1258pF @ 25V |
| Packaging | Tape & Reel (TR) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 50 Weeks |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
| Other Names | NVTFS5116PLTAG-ND NVTFS5116PLTAGOSTR |
| Package / Case | 8-PowerWDFN |
| Series | - |
Data sheet: Work in prgress, stay tuned!
