Category
Transistors - FETs, MOSFETs - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

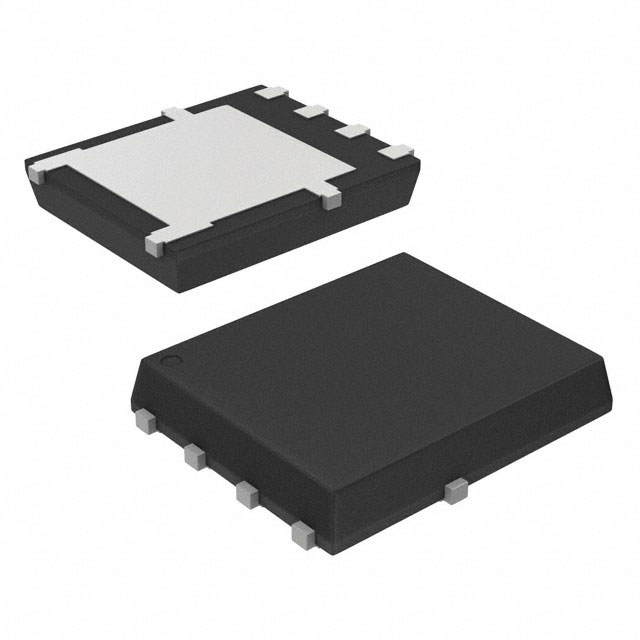

| Part Number: | NVMFS6H801NT1G |
| Description: | TRENCH 8 80V NFET |
| Lead Free Status / RoHS Status: | |
| Packaging | Digi-Reel® |
| Current - Continuous Drain (Id) @ 25°C | 23A (Ta), 157A (Tc) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 4120pF @ 40V |
| Power Dissipation (Max) | 3.8W (Ta), 166W (Tc) |
| Manufacturer Standard Lead Time | 42 Weeks |
| Mounting Type | Surface Mount |
| Drain to Source Voltage (Vdss) | 80V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Gate Charge (Qg) (Max) @ Vgs | 64nC @ 10V |
| FET Feature | - |
| Other Names | NVMFS6H801NT1GOSDKR |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Lead Free Status | Lead free |
| Rds On (Max) @ Id, Vgs | 2.8 mOhm @ 50A, 10V |
| Series | Automotive, AEC-Q101 |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Meta Part Number | NVMFS6H801NT1GOSDKR-ND |
| Vgs (Max) | ±20V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Detailed Description | N-Channel 80V 23A (Ta), 157A (Tc) 3.8W (Ta), 166W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL) |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
Data sheet: Work in prgress, stay tuned!
