Category
Transistors - FETs, MOSFETs - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

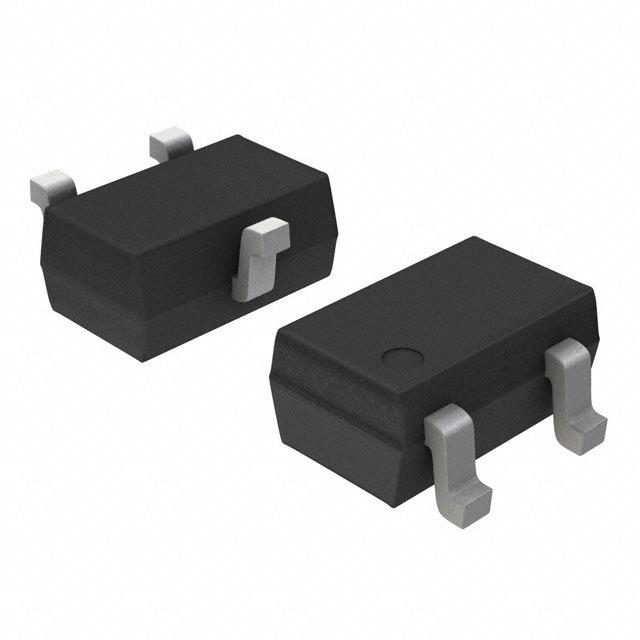

| Part Number: | NTS4001NT1G |
| Description: | MOSFET N-CH 30V 270MA SOT-323 |
| Lead Free Status / RoHS Status: | |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
| Vgs (Max) | ±20V |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) (Max) @ Vds | 33pF @ 5V |
| Meta Part Number | NTS4001NT1GOSTR-ND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Drain to Source Voltage (Vdss) | 30V |
| Manufacturer Standard Lead Time | 16 Weeks |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vgs(th) (Max) @ Id | 1.5V @ 100µA |
| Other Names | NTS4001NT1GOS NTS4001NT1GOS-ND NTS4001NT1GOSTR |
| Current - Continuous Drain (Id) @ 25°C | 270mA (Ta) |
| Power Dissipation (Max) | 330mW (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V |
| Detailed Description | N-Channel 30V 270mA (Ta) 330mW (Ta) Surface Mount SC-70-3 (SOT323) |
| Gate Charge (Qg) (Max) @ Vgs | 1.3nC @ 5V |
| Rds On (Max) @ Id, Vgs | 1.5 Ohm @ 10mA, 4V |
| Series | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| FET Feature | - |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
Data sheet: Work in prgress, stay tuned!
