Category
Interface - Analog Switches, Multiplexers, Demultiplexers
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

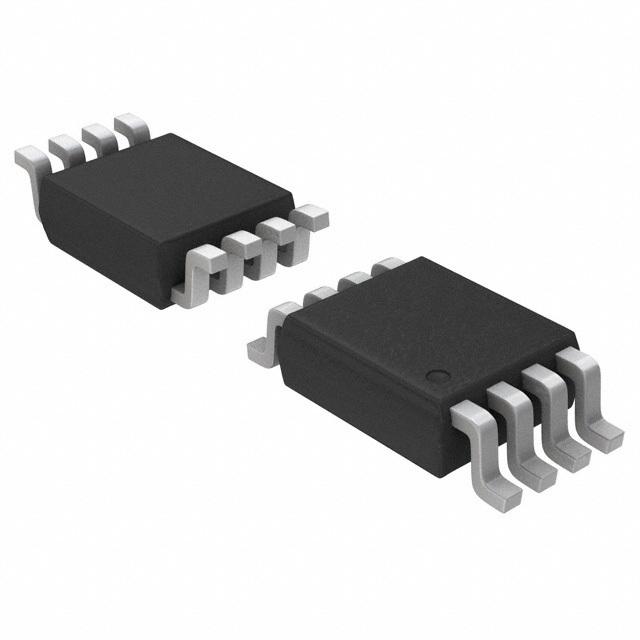

| Part Number: | NL7WB66USG |
| Description: | IC SWITCH DUAL SPST US8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Package / Case | 8-VFSOP (0.091, 2.30mm Width) |
| Meta Part Number | NL7WB66USGOSTR-ND |
| -3db Bandwidth | 186MHz |
| Series | - |
| Number of Circuits | 2 |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF |
| Charge Injection | 7.5pC |
| Channel-to-Channel Matching (ΔRon) | 15 Ohm |
| Switch Circuit | SPST - NO |
| Switch Time (Ton, Toff) (Max) | 3.9ns, 6.3ns |
| Detailed Description | 2 Circuit IC Switch 1:1 10 Ohm US8 |
| Other Names | NL7WB66USGOS "######"NL7WB66USGOS-ND "######"NL7WB66USGOSTR |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply, Dual (V±) | - |
| Supplier Device Package | US8 |
| Manufacturer Standard Lead Time | 22 Weeks |
| Crosstalk | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Packaging | Tape & Reel (TR) |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| On-State Resistance (Max) | 10 Ohm |
| Base Part Number | NL7WB66 |
| Voltage - Supply, Single (V+) | 1.65 V ~ 5.5 V |
Data sheet: Work in prgress, stay tuned!
