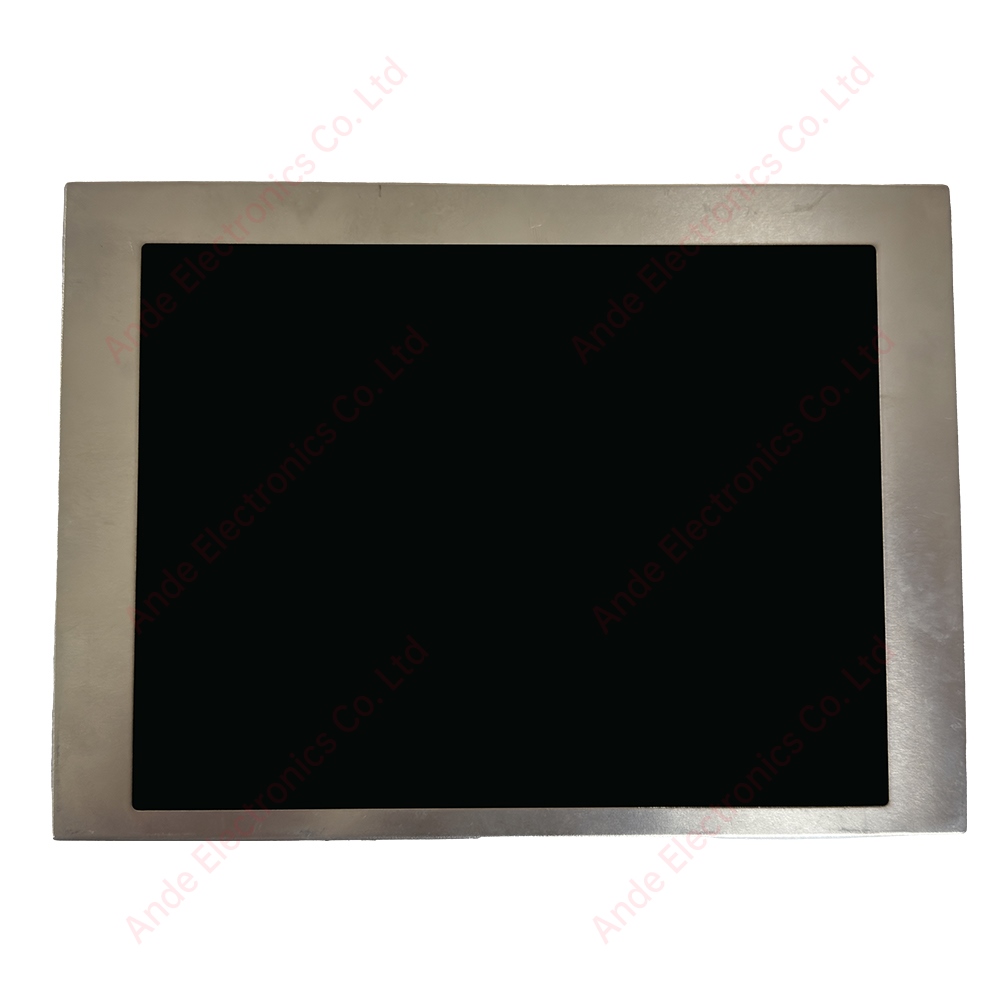

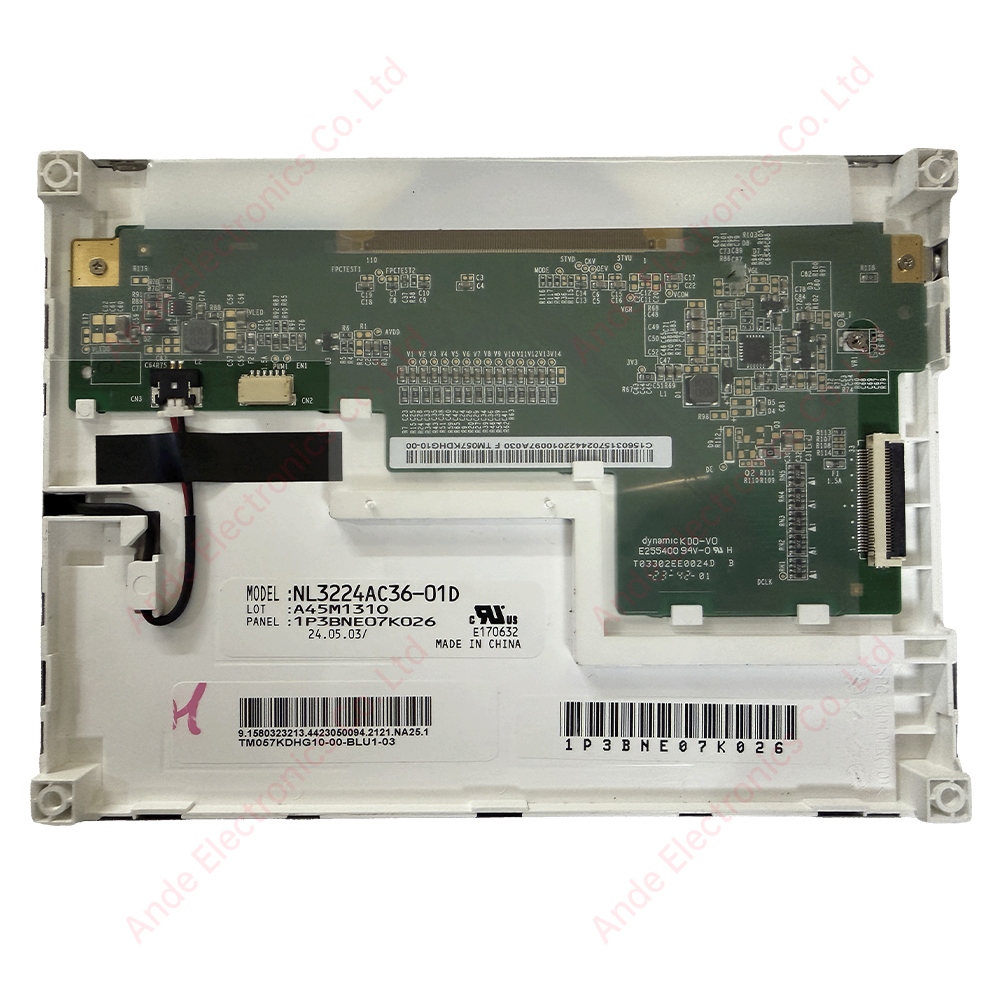

NL3224AC36-01D is a 5.7-inch QVGA 320x240 industrial TFT LCD module from NEC/NLT Technologies, designed for high-reliability embedded and industrial applications. It features a CMOS RGB 6-bit interface, wide temperature operation (-30°C to +80°C), and a WLED backlight system with built-in driver, ensuring stable performance in long-term industrial environments. This model is widely used in industrial control systems, embedded HMI panels, medical devices, measurement instruments, and legacy equipment replacement projects. Andesource provides OEM sourcing, cross-reference replacement, and long-term supply support for NL3224AC36-01D and compatible industrial LCD modules.
Data sheet:
ANDE LCD Brochure.pdf
Supplying LCD displays since 1998, ANDE Electronics has built extensive expertise and a reliable network of manufacturers, ensuring high-quality components and solutions.
We stock LCD displays ranging from 1.3’’ to 65’’, ready for immediate delivery to meet both small-scale and large-scale project needs.
Discontinued modules are often difficult to source. ANDE Electronics provides access to hard-to-find LCD stock, helping clients complete projects without delays.
Our team assists with LCD screen selection and integration, offering guidance to make sure the right display fits your project requirements.
We offer enhancements and add-ons such as touch screen overlays, driver boards, and highlighted features.
ANDE Electronics provides custom touch solutions, allowing clients to upgrade standard LCD modules with touch functionality tailored to specific applications.
Panel size: 12.1 inches, 15.0 inches, 17.0 inches, 19.0 inches, 21.5 inches
Resolution: 800*600, 640*480, 1024*768
Brightness: 350nit, 400nit, 500nit, 600nit, 700nit
Supported colors: 262K/16.7M 262K/16.2M
Working temperature: -30 ~70°C -20 ~70°C 0 ~ 50 °C
Touch mode: Resistive screen
Interface: LVDS (supports HDMI adapter board)
Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.
Panel size: 10.4 inches, 12.1 inches, 15 inches
Resolution: 640*480, 1280*800, 1024*768
Brightness: 350nit, 400nit, 550nit, 1000nit, 1500nit
Supported colors: 262K/16.2M
Working temperature: -30 ~ 80 °C -30 ~ 70 °C -20 ~ 70 °C
Touch mode: Resistive screen Capacitive screen
Interface: LVDS, TTL (supports HDMI adapter board)
Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.
