Category
PMIC - Voltage Regulators - Linear
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

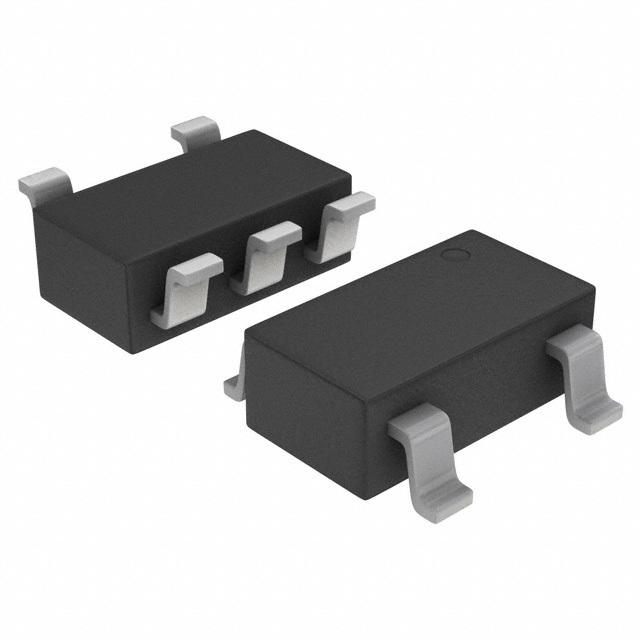

| Part Number: | NCP500SN33T1G |
| Description: | IC REG LINEAR 3.3V 150MA 5TSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Voltage - Input (Max) | 6V |
| Current - Output | 150mA |
| Meta Part Number | NCP500SN33T1GOSCT-ND |
| Supplier Device Package | 5-TSOP |
| PSRR | 62dB (1kHz) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Mounting Type | Surface Mount |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 150mA 5-TSOP |
| Voltage - Output (Max) | - |
| Packaging | Cut Tape (CT) |
| Protection Features | Over Current, Over Temperature |
| Manufacturer Standard Lead Time | 13 Weeks |
| Current - Supply (Max) | 300µA |
| Voltage Dropout (Max) | 0.23V @ 150mA |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Output Type | Fixed |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Control Features | Enable |
| Series | - |
| Other Names | NCP500SN33T1GOS "######"NCP500SN33T1GOS-ND "######"NCP500SN33T1GOSCT |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Regulators | 1 |
| Voltage - Output (Min/Fixed) | 3.3V |
| Base Part Number | NCP500 |
| Current - Quiescent (Iq) | 1µA |
Data sheet: Work in prgress, stay tuned!
