Category
Diodes - Rectifiers - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

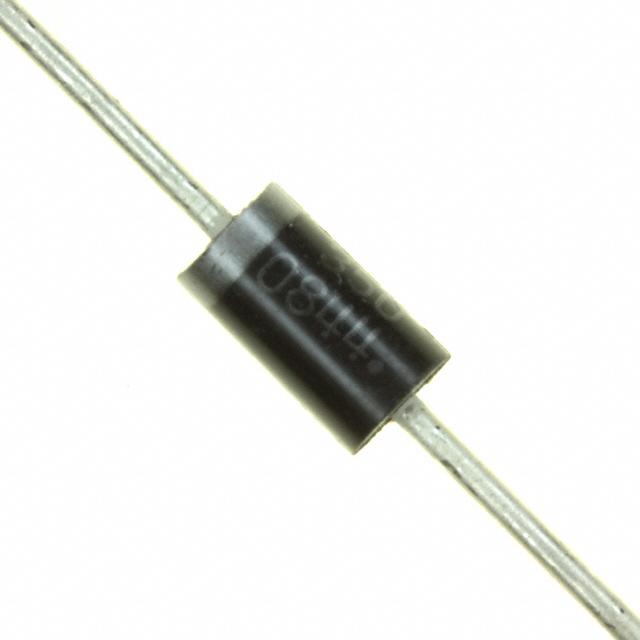

| Part Number: | MUR4100EG |
| Description: | DIODE GEN PURP 1KV 4A DO201AD |
| Lead Free Status / RoHS Status: | |
| Speed | Fast Recovery = 200mA (Io) |
| Other Names | MUR4100EG-ND MUR4100EGOS |
| Series | SWITCHMODE™ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.85V @ 4A |
| Voltage - DC Reverse (Vr) (Max) | 1000V |
| Mounting Type | Through Hole |
| Reverse Recovery Time (trr) | 100ns |
| Current - Average Rectified (Io) | 4A |
| Manufacturer Standard Lead Time | 5 Weeks |
| Detailed Description | Diode Standard 1000V 4A Through Hole DO-201AD |
| Current - Reverse Leakage @ Vr | 25µA @ 1000V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201AD |
| Base Part Number | MUR4100 |
| Meta Part Number | MUR4100EGOS-ND |
| Capacitance @ Vr, F | - |
| Packaging | Bulk |
| Operating Temperature - Junction | -65°C ~ 175°C |
Data sheet: Work in prgress, stay tuned!
