| TYPE | DESCRIPTION |

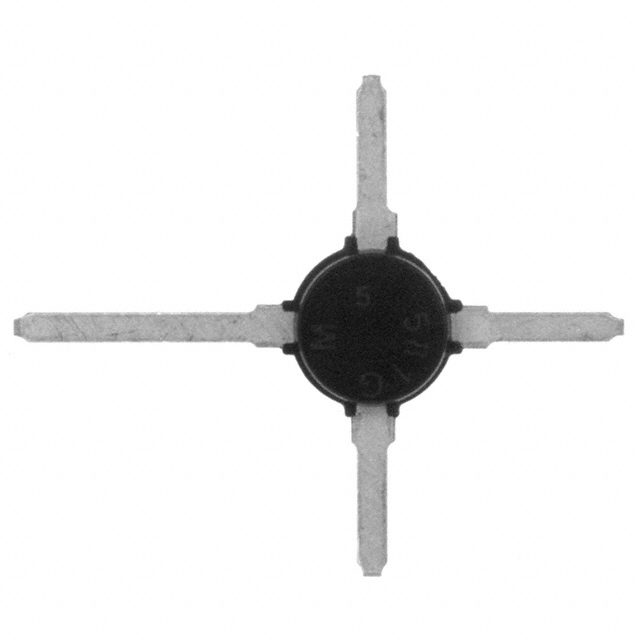

| Part Number: | MRF581G |
| Description: | TRANS NPN 18V 200MA MACRO X |
| Lead Free Status / RoHS Status: | |
| Transistor Type | NPN |
| Frequency - Transition | 5GHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Current - Collector (Ic) (Max) | 200mA |
| Detailed Description | RF Transistor NPN 18V 200mA 5GHz 1.25W Surface Mount Micro-X ceramic (84C) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Packaging | Bulk |
| Series | - |
| Voltage - Collector Emitter Breakdown (Max) | 18V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 50mA, 5V |
| Gain | 13dB ~ 15.5dB |
| Noise Figure (dB Typ @ f) | 3dB ~ 3.5dB @ 500MHz |
| Base Part Number | MRF581 |
| Supplier Device Package | Micro-X ceramic (84C) |
| Package / Case | Micro-X ceramic (84C) |
| Meta Part Number | MRF581G-ND |
| Power - Max | 1.25W |
| Other Names | MRF581GMI ",MRF581GMI-ND |
Data sheet: Work in prgress, stay tuned!
