Category
Radar UAV Chip
Manufacturer
MICROSEMI
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

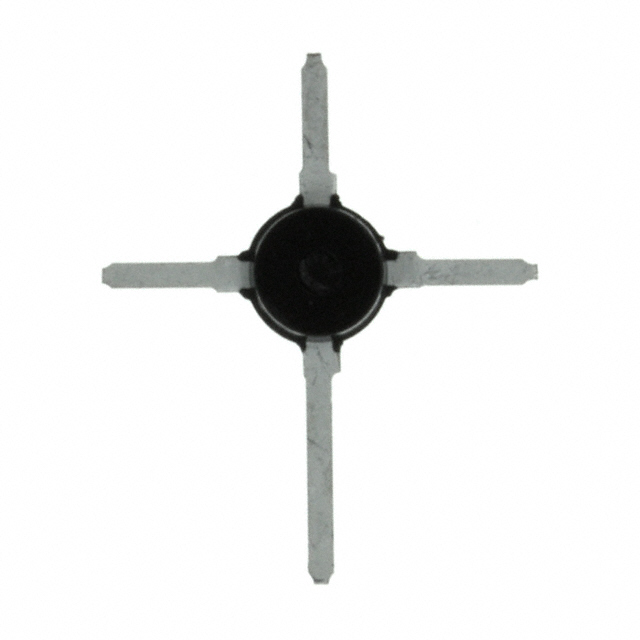

| Part Number: | MRF581A |
| Description: | TRANS NPN 15V 200MA MACRO X |
| Lead Free Status / RoHS Status: | |
| Gain | 13dB ~ 15.5dB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Current - Collector (Ic) (Max) | 200mA |
| Operating Temperature | 150°C (TJ) |
| Noise Figure (dB Typ @ f) | 3dB ~ 3.5dB @ 500MHz |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Other Names | MRF581AMI MRF581AMI-ND |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| Supplier Device Package | Micro-X ceramic (84C) |
| Transistor Type | NPN |
| Meta Part Number | MRF581A-ND |
| Power - Max | 1.25W |
| Frequency - Transition | 5GHz |
| Series | - |
| Packaging | Bulk |
| Detailed Description | RF Transistor NPN 15V 200mA 5GHz 1.25W Surface Mount Micro-X ceramic (84C) |
| Base Part Number | MRF581 |
| Package / Case | Micro-X ceramic (84C) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 90 @ 50mA, 5V |
| Mounting Type | Surface Mount |
Data sheet: Work in prgress, stay tuned!
