Category
Transistors - Bipolar (BJT) - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

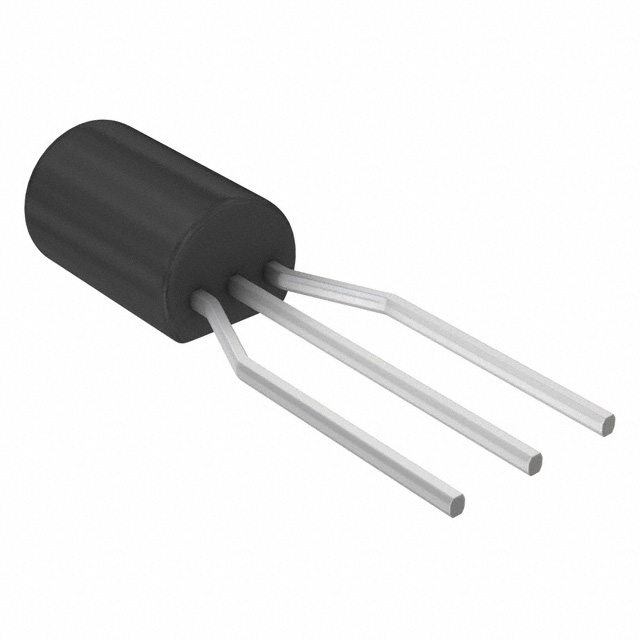

| Part Number: | MPSW42G |
| Description: | TRANS NPN 300V 0.5A TO-92 |
| Lead Free Status / RoHS Status: | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Collector Emitter Breakdown (Max) | 300V |
| Transistor Type | NPN |
| Base Part Number | MPSW42 |
| Other Names | MPSW42G-ND MPSW42GOS |
| Supplier Device Package | TO-92 (TO-226) |
| Detailed Description | Bipolar (BJT) Transistor NPN 300V 500mA 50MHz 1W Through Hole TO-92 (TO-226) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 30mA, 10V |
| Mounting Type | Through Hole |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 2mA, 20mA |
| Power - Max | 1W |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Frequency - Transition | 50MHz |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Series | - |
| Meta Part Number | MPSW42GOS-ND |
| Packaging | Bulk |
| Current - Collector (Ic) (Max) | 500mA |
Data sheet: Work in prgress, stay tuned!
