Category
Embedded - Microprocessors
Manufacturer
Freescale / NXP Semiconductors
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

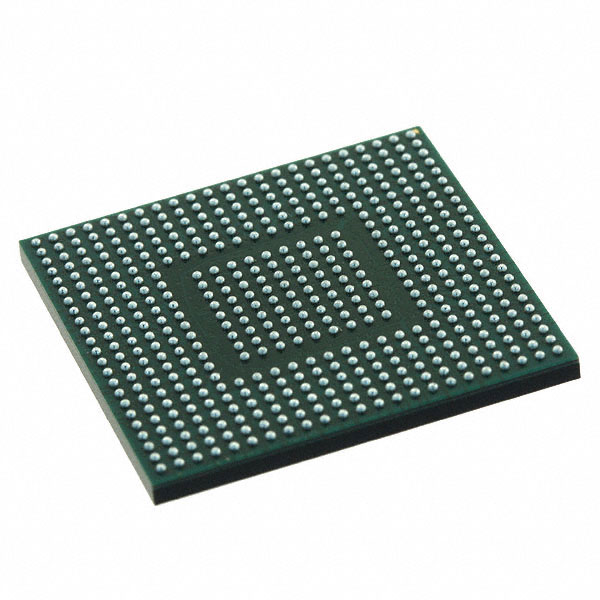

| Part Number: | MPC8309VMAGDCA |
| Description: | IC MPU MPC83XX 400MHZ 489BGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Series | MPC83xx |
| Packaging | Tray |
| Co-Processors/DSP | Communications; QUICC Engine |
| Ethernet | 10/100 Mbps (3) |
| Other Names | 568-14354 "######"935317359557 "######"MPC8309VMAGDCA-ND |
| Meta Part Number | 568-14354-ND |
| Additional Interfaces | CAN, DUART, I²C, MMC/SD, PCI, SPI, TDM |
| Security Features | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Core Processor | PowerPC e300c3 |
| USB | USB 2.0 (1) |
| Supplier Device Package | 489-PBGA (19x19) |
| Display & Interface Controllers | - |
| Speed | 400MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Voltage - I/O | 1.8V, 3.3V |
| Graphics Acceleration | No |
| SATA | - |
| Package / Case | 489-LFBGA |
| RAM Controllers | DDR2 |
| Detailed Description | PowerPC e300c3 Microprocessor IC MPC83xx 1 Core, 32-Bit 400MHz 489-PBGA (19x19) |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Base Part Number | MPC8309 |
Data sheet: Work in prgress, stay tuned!
