Category
Transistors - Bipolar (BJT) - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

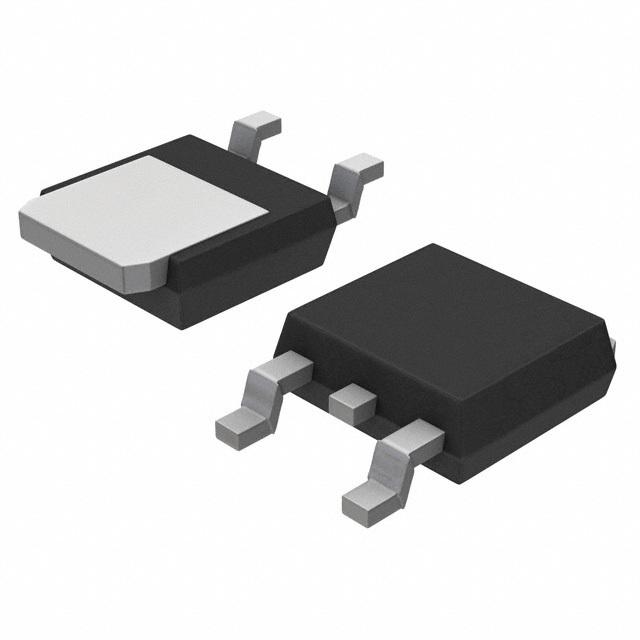

| Part Number: | MJD122G |
| Description: | TRANS NPN DARL 100V 8A DPAK |
| Lead Free Status / RoHS Status: | |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 80mA, 8A |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Series | - |
| Manufacturer Standard Lead Time | 15 Weeks |
| Meta Part Number | MJD122GOS-ND |
| Power - Max | 1.75W |
| Base Part Number | MJD122 |
| Current - Collector Cutoff (Max) | 10µA |
| Voltage - Collector Emitter Breakdown (Max) | 100V |
| Mounting Type | Surface Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Collector (Ic) (Max) | 8A |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Other Names | MJD122G-ND MJD122GOS |
| Packaging | Tube |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 4A, 4V |
| Frequency - Transition | 4MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN - Darlington 100V 8A 4MHz 1.75W Surface Mount DPAK |
| Transistor Type | NPN - Darlington |
Data sheet: Work in prgress, stay tuned!
