Category
PMIC - Voltage Regulators - Linear
Manufacturer
Micrel / Microchip Technology
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

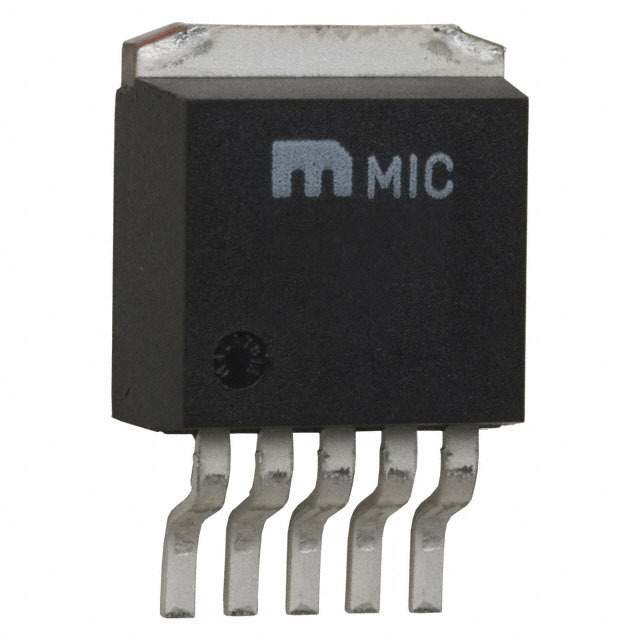

| Part Number: | MIC29502WU |
| Description: | IC REG LINEAR POS ADJ 5A TO263-5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Voltage - Input (Max) | 26V |
| Meta Part Number | 576-2241-ND |
| Other Names | 576-2241 "######"MIC29502WU-ND |
| Manufacturer Standard Lead Time | 8 Weeks |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| PSRR | - |
| Series | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Output Type | Adjustable |
| Base Part Number | MIC29502 |
| Voltage Dropout (Max) | 0.6V @ 5A |
| Current - Output | 5A |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Voltage - Output (Max) | 25V |
| Control Features | Enable |
| Packaging | Tube |
| Voltage - Output (Min/Fixed) | 1.25V |
| Output Configuration | Positive |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-5 |
| Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 1.25 V ~ 26 V 5A TO-263-5 |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Transient Voltage |
Data sheet: Work in prgress, stay tuned!
