Category
PMIC - Power Distribution Switches, Load Drivers
Manufacturer
Micrel / Microchip Technology
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

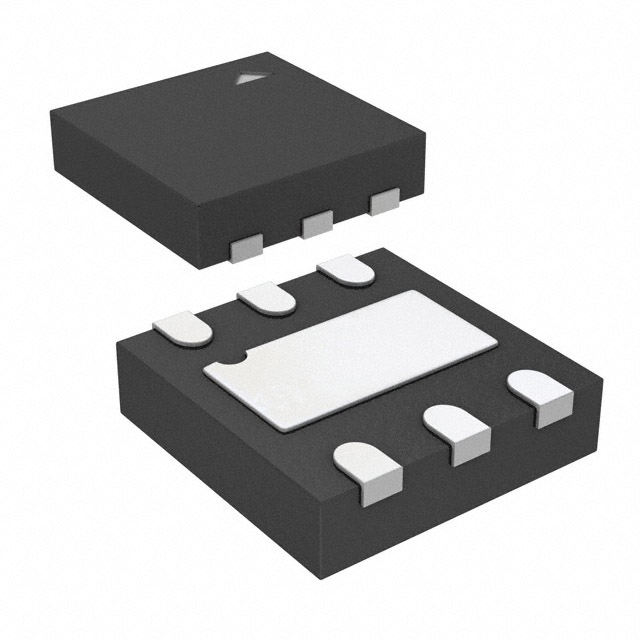

| Part Number: | MIC2039AYMT-TR |
| Description: | IC SW DISTRIBUTION 6TDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Supplier Device Package | 6-TDFN (2x2) |
| Ratio - Input:Output | 1:1 |
| Package / Case | 6-UDFN Exposed Pad |
| Current - Output (Max) | 2.5A |
| Voltage - Load | 2.5 V ~ 5.5 V |
| Switch Type | General Purpose |
| Other Names | 576-4147-2 "######"MIC2039AYMT TR "######"MIC2039AYMTTR |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Packaging | Tape & Reel (TR) |
| Base Part Number | MIC2039 |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Features | Slew Rate Controlled, Status Flag |
| Number of Outputs | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Meta Part Number | 576-4147-2-ND |
| Output Type | P-Channel |
| Manufacturer Standard Lead Time | 6 Weeks |
| Output Configuration | High Side |
| Interface | On/Off |
| Rds On (Typ) | 75 mOhm |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Input Type | Non-Inverting |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Series | - |
Data sheet: Work in prgress, stay tuned!
