Category
Embedded - Microcontrollers
Manufacturer
Freescale / NXP Semiconductors
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

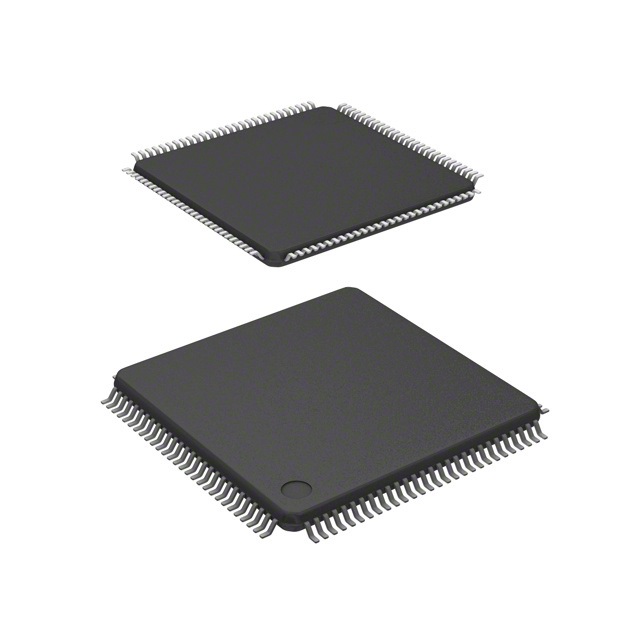

| Part Number: | MC9S12D64CPVE |
| Description: | IC MCU 16BIT 64KB FLASH 112LQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Speed | 25MHz |
| Other Names | 935323998557 |
| Base Part Number | MC9S12D64 |
| Series | HCS12 |
| Program Memory Size | 64KB (64K x 8) |
| Packaging | Tray |
| Data Converters | A/D 16x10b |
| Peripherals | PWM, WDT |
| Voltage - Supply (Vcc/Vdd) | 2.35 V ~ 5.25 V |
| RAM Size | 4K x 8 |
| Detailed Description | HCS12 HCS12 Microcontroller IC 16-Bit 25MHz 64KB (64K x 8) FLASH 112-LQFP (20x20) |
| Number of I/O | 91 |
| Oscillator Type | Internal |
| Package / Case | 112-LQFP |
| Core Processor | HCS12 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Meta Part Number | MC9S12D64CPVE-ND |
| Core Size | 16-Bit |
| Manufacturer Standard Lead Time | 10 Weeks |
| Connectivity | CANbus, I²C, SCI, SPI |
| Program Memory Type | FLASH |
| Supplier Device Package | 112-LQFP (20x20) |
| EEPROM Size | 1K x 8 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
Data sheet: Work in prgress, stay tuned!
