Category
PMIC - Power Distribution Switches, Load Drivers
Manufacturer
Freescale / NXP Semiconductors
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

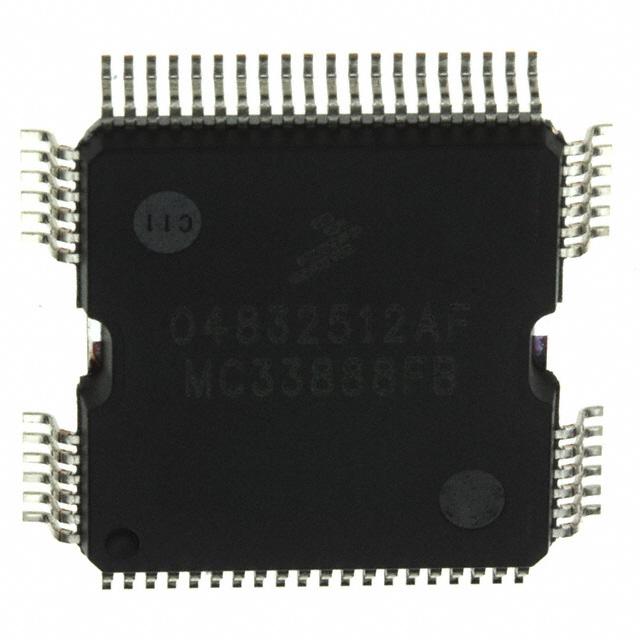

| Part Number: | MC33888FBR2 |
| Description: | IC SWITCH QUAD HI SIDE 64-QFP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Rds On (Typ) | 10 mOhm, 40 mOhm, 600 mOhm |
| Output Configuration | High Side or Low Side |
| Supplier Device Package | 64-PQFP (14x14) |
| Output Type | N-Channel |
| Meta Part Number | MC33888FBR2TR-ND |
| Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 5.5 V |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Interface | SPI |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Type | - |
| Current - Output (Max) | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage |
| Base Part Number | MC33888 |
| Switch Type | General Purpose |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Outputs | 12 (4 High Side, 8 Low Side) |
| Series | - |
| Ratio - Input:Output | - |
| Features | Watchdog Timer |
| Other Names | MC33888FBR2-ND "######"MC33888FBR2TR |
| Package / Case | 64-PowerBQFP |
| Voltage - Load | 6 V ~ 27 V |
Data sheet: Work in prgress, stay tuned!
