Category
PMIC - Voltage Reference
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

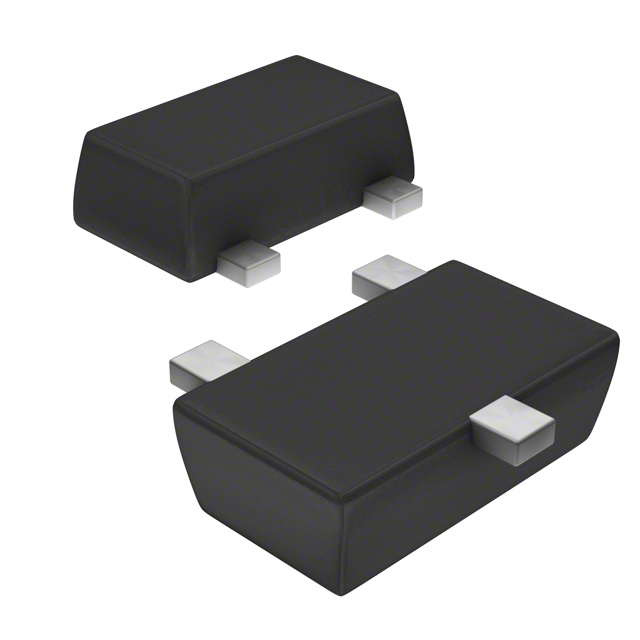

| Part Number: | LM431SBCMFX |
| Description: | IC VREF SHUNT ADJ SOT-23F |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Packaging | Cut Tape (CT) |
| Voltage - Output (Max) | 36V |
| Temperature Coefficient | 50ppm/°C Typical |
| Current - Cathode | 1mA |
| Voltage - Input | - |
| Other Names | LM431SBCMFXCT |
| Series | - |
| Manufacturer Standard Lead Time | 6 Weeks |
| Base Part Number | LM431 |
| Reference Type | Shunt |
| Current - Output | 100mA |
| Noise - 10Hz to 10kHz | - |
| Supplier Device Package | SOT-23F-3 |
| Tolerance | ±1% |
| Output Type | Adjustable |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Noise - 0.1Hz to 10Hz | - |
| Current - Supply | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Output (Min/Fixed) | 2.495V |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-3 Flat Leads |
| Meta Part Number | LM431SBCMFXCT-ND |
| Detailed Description | Shunt Voltage Reference IC 36V ±1% 100mA SOT-23F-3 |
Data sheet: Work in prgress, stay tuned!
