Category
Transistors - Bipolar (BJT) - Single
Manufacturer
Microsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

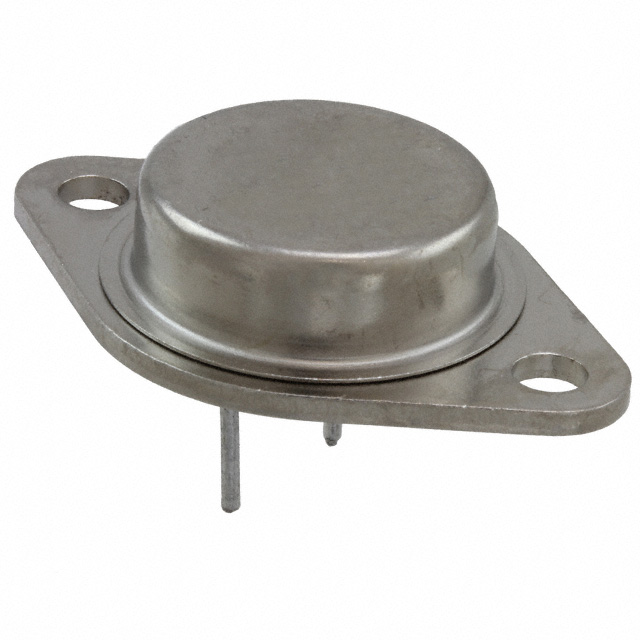

| Part Number: | JANTX2N6058 |
| Description: | TRANS NPN DARL 80V 12A TO-3 |
| Lead Free Status / RoHS Status: | |
| Detailed Description | Bipolar (BJT) Transistor NPN - Darlington 80V 12A 150W Through Hole TO-3 |
| Meta Part Number | 1088-1025-ND |
| Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-3 |
| Series | Military, MIL-PRF-19500/502 |
| Manufacturer Standard Lead Time | 20 Weeks |
| Mounting Type | Through Hole |
| Transistor Type | NPN - Darlington |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Frequency - Transition | - |
| Packaging | Bulk |
| Power - Max | 150W |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 6A, 3V |
| Current - Collector Cutoff (Max) | 1mA |
| Other Names | 1088-1025 1088-1025-MIL |
| Voltage - Collector Emitter Breakdown (Max) | 80V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 120mA, 12A |
| Current - Collector (Ic) (Max) | 12A |
Data sheet: Work in prgress, stay tuned!
