Category
Transistors - Bipolar (BJT) - Single
Manufacturer
Microsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

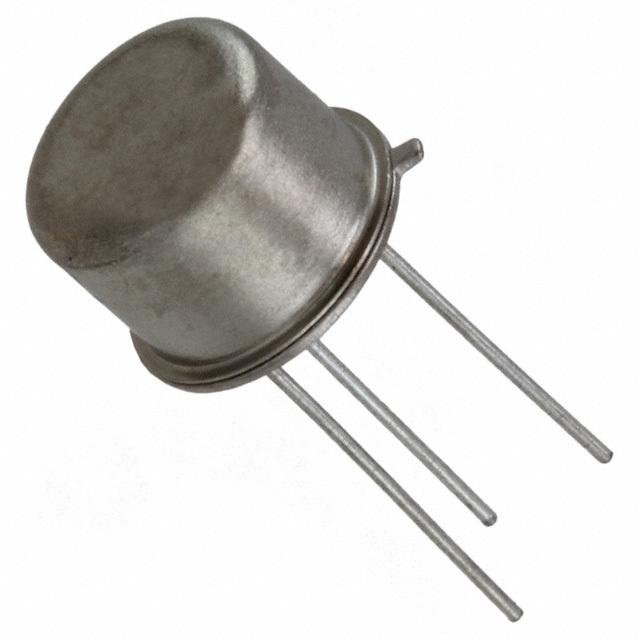

| Part Number: | JANTX2N3501 |
| Description: | TRANS NPN 150V 0.3A |
| Lead Free Status / RoHS Status: | |
| Series | Military, MIL-PRF-19500/366 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Mounting Type | Through Hole |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 15mA, 150mA |
| Frequency - Transition | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| Power - Max | 1W |
| Supplier Device Package | TO-39 |
| Other Names | 1086-2700 1086-2700-MIL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Detailed Description | Bipolar (BJT) Transistor NPN 150V 300mA 1W Through Hole TO-39 |
| Current - Collector (Ic) (Max) | 300mA |
| Manufacturer Standard Lead Time | 23 Weeks |
| Transistor Type | NPN |
| Meta Part Number | 1086-2700-ND |
| Voltage - Collector Emitter Breakdown (Max) | 150V |
| Packaging | Bulk |
Data sheet: Work in prgress, stay tuned!
