Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Electro-Films (EFI) / Vishay
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

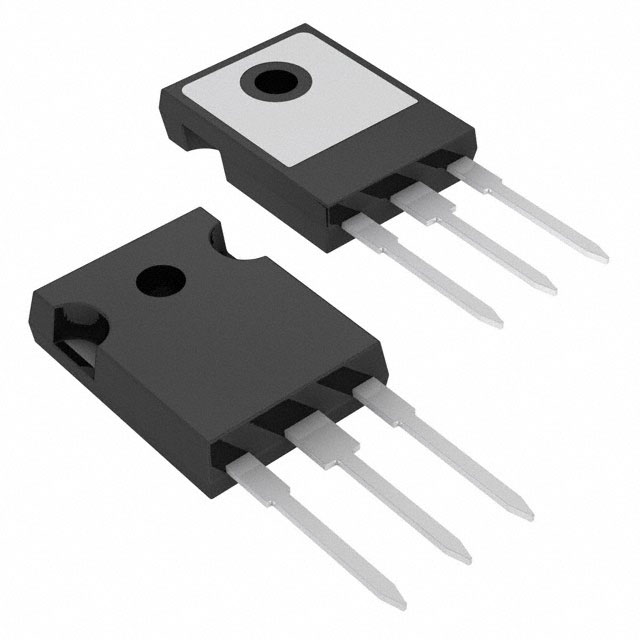

| Part Number: | IRFP460PBF |
| Description: | MOSFET N-CH 500V 20A TO-247AC |
| Lead Free Status / RoHS Status: | |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Input Capacitance (Ciss) (Max) @ Vds | 4200pF @ 25V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Package / Case | TO-247-3 |
| Packaging | Tube |
| Gate Charge (Qg) (Max) @ Vgs | 210nC @ 10V |
| Supplier Device Package | TO-247-3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 12 Weeks |
| Vgs (Max) | ±20V |
| Series | - |
| FET Type | N-Channel |
| FET Feature | - |
| Meta Part Number | IRFP460PBF-ND |
| Drain to Source Voltage (Vdss) | 500V |
| Other Names | *IRFP460PBF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Rds On (Max) @ Id, Vgs | 270 mOhm @ 12A, 10V |
| Power Dissipation (Max) | 280W (Tc) |
| Detailed Description | N-Channel 500V 20A (Tc) 280W (Tc) Through Hole TO-247-3 |
| Technology | MOSFET (Metal Oxide) |
Data sheet: Work in prgress, stay tuned!
