Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Cypress Semiconductor (Infineon Technologies)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

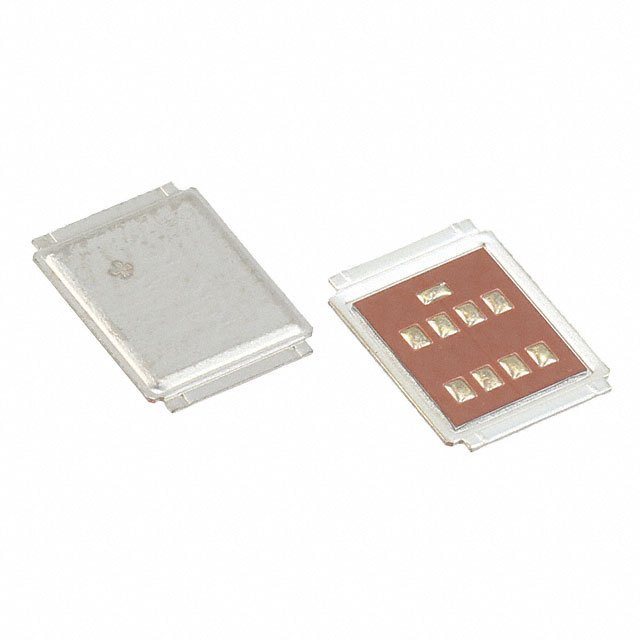

| Part Number: | IRF7769L1TRPBF |
| Description: | MOSFET N-CH 100V 20A DIRECTFET |
| Lead Free Status / RoHS Status: | |
| Meta Part Number | IRF7769L1TRPBFTR-ND |
| Vgs (Max) | ±20V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Package / Case | DirectFET™ Isometric L8 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Gate Charge (Qg) (Max) @ Vgs | 300nC @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 124A (Tc) |
| Series | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Supplier Device Package | DIRECTFET L8 |
| Drain to Source Voltage (Vdss) | 100V |
| Mounting Type | Surface Mount |
| Power Dissipation (Max) | 3.3W (Ta), 125W (Tc) |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Technology | MOSFET (Metal Oxide) |
| Other Names | IRF7769L1TRPBF-ND IRF7769L1TRPBFTR SP001566418 |
| Input Capacitance (Ciss) (Max) @ Vds | 11560pF @ 25V |
| Rds On (Max) @ Id, Vgs | 3.5 mOhm @ 74A, 10V |
| Detailed Description | N-Channel 100V 20A (Ta), 124A (Tc) 3.3W (Ta), 125W (Tc) Surface Mount DIRECTFET L8 |
Data sheet: Work in prgress, stay tuned!
